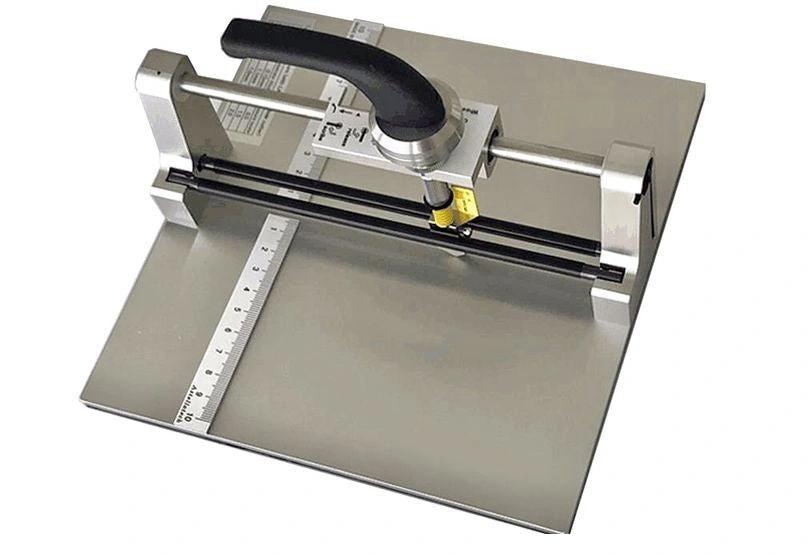

SYJ-DS100-LD Manual Diamond Scriber for Single-Crystal Wafers

Name: SYJ-DS100-LD Manual Diamond Scriber for Single-Crystal Wafers | LabSova
Brand: LabSova
SKU: SYJ-DS100-LD

ModelSYJ-DS100-LD

Score thin single-crystal substrates without a motor-driven saw. The SYJ-DS100-LD series combines a diamond scribing tool with spring-adjustable pressure and selectable working areas for small wafer preparation tasks.

Working area options 100 x 100, 200 x 200 or 300 x 300 mm

Maximum substrate thickness 1 mm, for single-crystal substrates

Pressure adjustment Spring-loaded, manually adjustable

Request a Quote View Specifications

Final configuration confirmed before quotation
Customization and accessories reviewed by application
Export packing and documentation available on request

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Typical applications

Silicon and germanium wafer preparation
Sapphire, lithium niobate and lithium tantalate substrates

Equipment features

Key product features

Spring-adjustable scribing pressure
Manual scribing and subsequent substrate splitting
Three working-area configurations

Technical data

Technical specifications

Specifications are organized by system so different equipment types can present the parameters that matter for their application.

Key specifications

Working area options	100 x 100, 200 x 200 or 300 x 300 mm
Maximum substrate thickness	1 mm, for single-crystal substrates
Pressure adjustment	Spring-loaded, manually adjustable
Overall dimensions by size	210 x 210 x 140; 310 x 310 x 140; 410 x 410 x 140 mm
Operation	Manual; no electrical supply required

Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Select the working area to suit the substrate dimensions. This is a manual scriber, not a rotating-blade dicing saw; confirm substrate thickness and the intended separation method before ordering.

Images may show optional accessories. Confirm blade, fixtures, electrical configuration and delivered items with LabSova before ordering.
