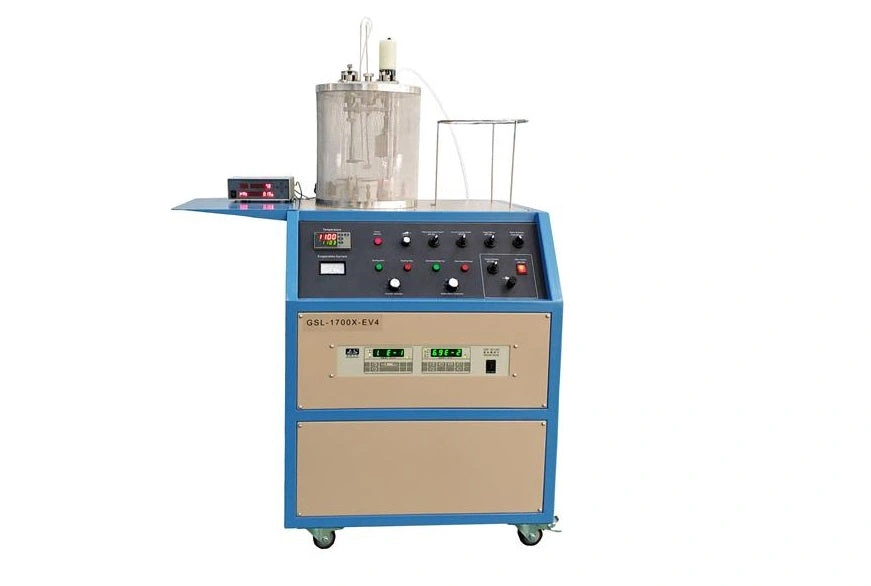

GSL-1700X-EV4 Four-Crucible Thermal Evaporator for Sequential Thin Films

Name: GSL-1700X-EV4 Four-Crucible Thermal Evaporator for Sequential Thin Films | LabSova
Brand: LabSova
SKU: GSL-1700X-EV4

ModelGSL-1700X-EV4

Four evaporation crucibles are heated sequentially for multilayer films, using a shared temperature controller and rotating 2-inch stage.

Evaporation crucibles 4 × 3 mL; sequential heating

Standard temperature range 200–1500 °C with S-type thermocouples

High-temperature option B-type thermocouple for 1200–1700 °C

Request a Quote View Specifications

Final configuration confirmed before quotation
Customization and accessories reviewed by application
Export packing and documentation available on request

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Equipment features

Key product features

Evaporation crucibles: 4 × 3 mL; sequential heating
Standard temperature range: 200–1500 °C with S-type thermocouples
High-temperature option: B-type thermocouple for 1200–1700 °C

Technical data

Technical specifications

Specifications are organized by system so different equipment types can present the parameters that matter for their application.

Key specifications

Evaporation crucibles	4 × 3 mL; sequential heating
Standard temperature range	200–1500 °C with S-type thermocouples
High-temperature option	B-type thermocouple for 1200–1700 °C
Sample stage	2 in diameter; 5 rpm
Chamber inner size	Ø260 × 310 mm
Temperature program	30 segments; ±1 °C

Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Confirm the evaporation material, source compatibility, substrate dimensions, vacuum level and electrical configuration with LabSova. Equipment and accessories are supplied according to the agreed configuration.

Product inquiry

Request a quotation

Tell us about the intended application, required configuration, quantity and destination.

To quote accurately, include:

Material, process and target result
Capacity, operating range and required accessories
Destination country, voltage and expected quantity

Name * Business email * Company Country / region Phone / WhatsApp Preferred contact Requirement * Security check *

7 + 3 = ?

Procurement details can be confirmed before ordering.

For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
