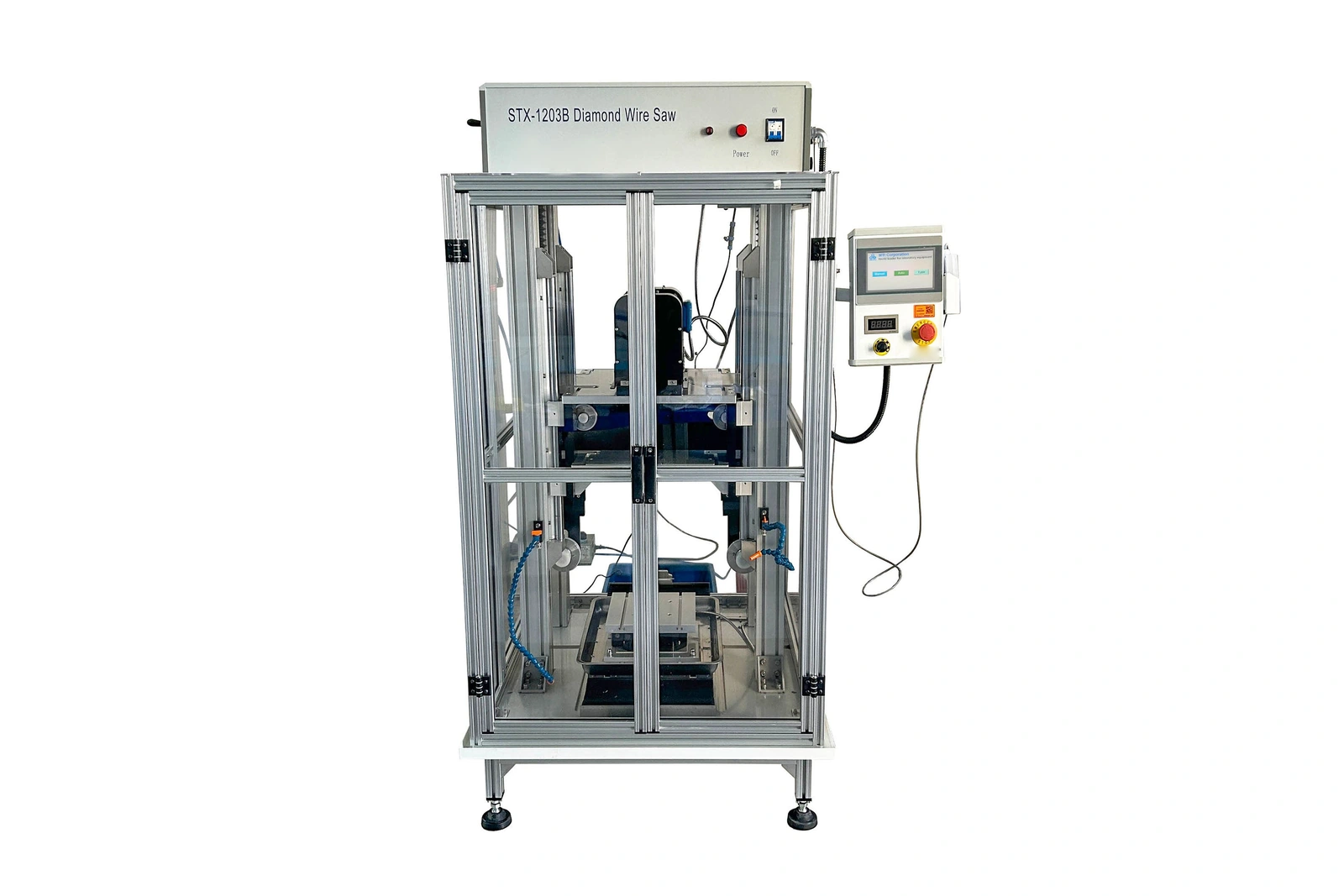

STX-1203B Guarded 300 mm Precision Wire Saw with PLC Touchscreen
A guarded 300 mm wire saw with programmable feed, sample rotation and wire speeds up to 15 m/s.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Key product features
-
Maximum workpiece: Ø300 × 300 mm; 20 kg
-
Z travel: 0.01–300 mm; ±0.01 mm
-
Y travel: 0.01–300 mm; ±0.01 mm
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Key specifications
| Maximum workpiece | Ø300 × 300 mm; 20 kg |
|---|---|
| Z travel | 0.01–300 mm; ±0.01 mm |
| Y travel | 0.01–300 mm; ±0.01 mm |
| Feed speed | 0.05–40 mm/min |
| Wire speed | 0–15 m/s |
| Dimensions and net weight | 1120 × 960 × 1820 mm; 340 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Confirm the sample material, dimensions, cutting fluid, wire or electrode and electrical supply with LabSova before specifying the system. Accessories shown are subject to the agreed configuration.
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
