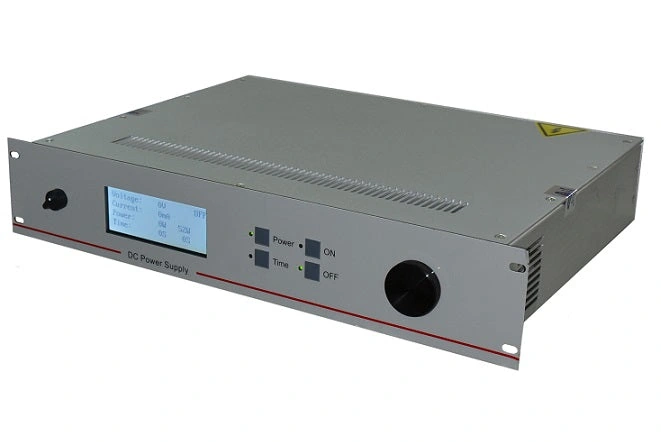

DC-500-LD 500 W DC Sputtering Power Supply for System Integration
A rack-style DC source with voltage and current readout for driving a separately selected magnetron sputtering head.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Key product features
-
Maximum power: 500 W
-
Maximum output voltage: 600 V DC
-
Maximum output current: 0.8 A
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Key specifications
| Maximum power | 500 W |
|---|---|
| Maximum output voltage | 600 V DC |
| Maximum output current | 0.8 A |
| Display resolution | 1 V; 1 mA |
| AC input | 220 V ±10% |
| Case dimensions | 440 × 85 × 403 mm |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Confirm target materials, substrate dimensions, power sources, vacuum pumps, cooling and gas requirements with LabSova. Optional components and laboratory utilities must be specified separately.
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
