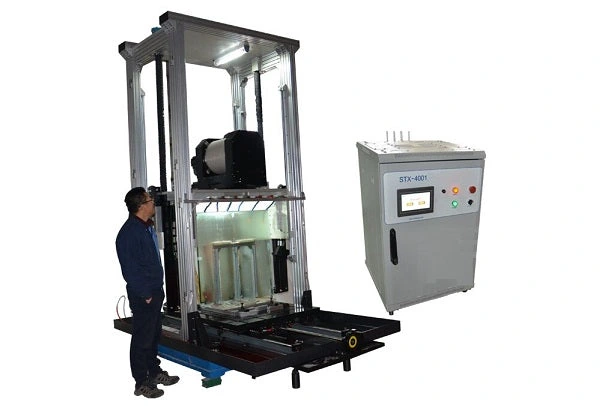

STX-4001 1000 mm Diamond Wire Saw for Large Material Samples
Designed for large samples, this wire saw combines a 1000 mm cutting envelope with a sample stage rated up to 1500 kg.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Key product features
-
Cutting envelope: Ø1000 × 1000 mm
-
Maximum stage load: 1500 kg
-
Feed speed: 0.05–100 mm/min
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Key specifications
| Cutting envelope | Ø1000 × 1000 mm |
|---|---|
| Maximum stage load | 1500 kg |
| Feed speed | 0.05–100 mm/min |
| Wire speed | 0–5 m/s |
| Diamond wire | Ø0.65 mm × 400 m |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Confirm the sample material, dimensions, cutting fluid, wire or electrode and electrical supply with LabSova before specifying the system. Accessories shown are subject to the agreed configuration.
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
