Electric and Automatic Laboratory Presses
PCD-60S 60T Electric Press
ModelPCD-60S
PCD-60S Electric Press. Pressing load range: 0-60T; Working space: 180 × 210 mm; Maximum piston stroke: 50 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

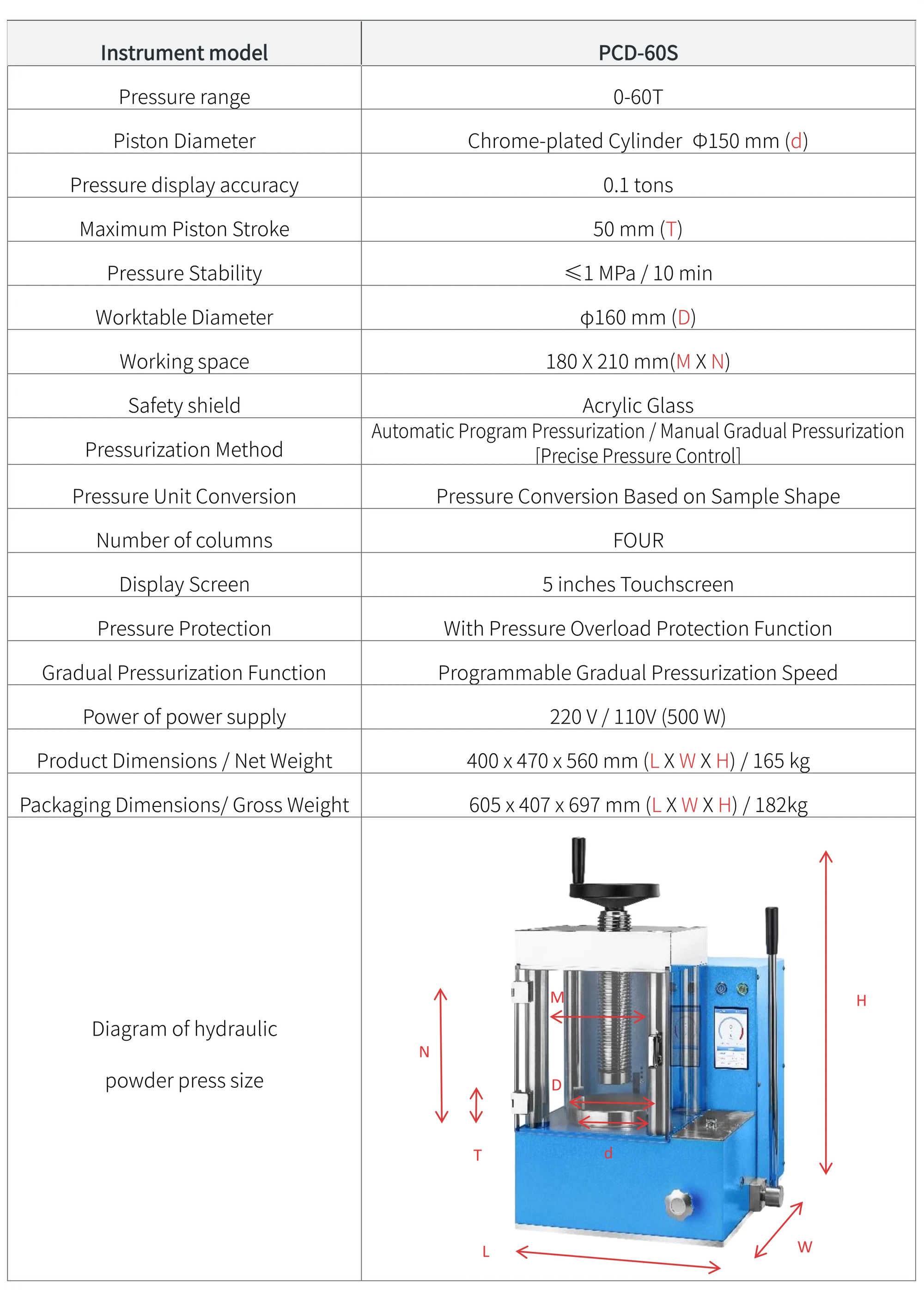

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 60 tonnes |
|---|
Technical specifications
| Pressing load range | 0-60T |
|---|---|
| Piston diameter | Chrome-plated Cylinder Ø150 mm |
| Pressure display resolution | 0.1 tons |
| Maximum piston stroke | 50 mm |
| Pressure stability | ≤1 MPa / 10 min |
| Workbench diameter | Ø160 mm |
| Working space | 180 × 210 mm |
| Safety guard | Acrylic guard |
| Pressurization method | Automatic programmed pressurization or manual gradual pressurization |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
