Electric and Automatic Laboratory Presses
PP-150S 150T Automatic Press
ModelPP-150S
PP-150S Automatic Press. Pressing load range: 0-150 tons; Power supply: 500 W (220 V/ 110 V customizable).
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data

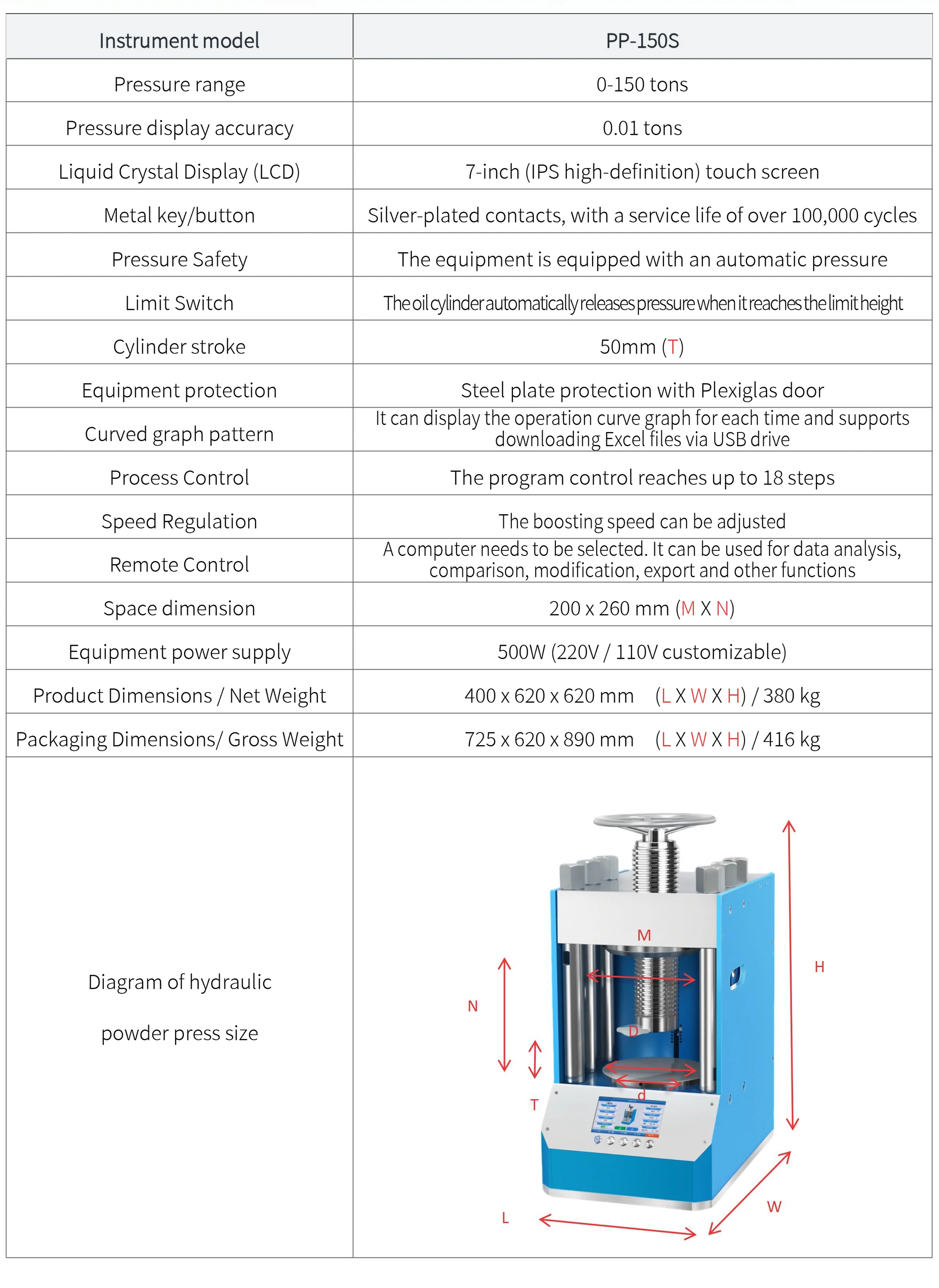

Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 150 tonnes |
|---|
Technical specifications
| Pressing load range | 0-150 tons |
|---|---|
| Pressure display resolution | 0.01 tons |
| LCD display | 7-inch (IPS high-definition) touch screen |
| Overpressure protection | Automatic pressure overload protection |
| Limit switch | Automatic pressure release at the cylinder travel limit |
| Cylinder stroke | 50 mm |
| Equipment protection | Steel guard with acrylic door |
| Curve display | Process curve display with Excel export to a USB drive |
| Program control | The program control reaches up to 18 steps |
| Speed adjustment | Adjustable pressurization rate |
| Remote control | Optional computer for data analysis, comparison, editing and export |
| Space dimensions | 200 × 260 mm |
| Power supply | 500 W (220 V/ 110 V customizable) |
| Product dimensions / net weight | 400 × 620 × 620 mm/380 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
