Electric and Automatic Laboratory Presses
PP-40S 40T Automatic Press
ModelPP-40S
PP-40S Automatic Press. Pressing load range: 0-40 tons; Power supply: 500 W (220 V / 110 V customizable).
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 40 tonnes |
|---|

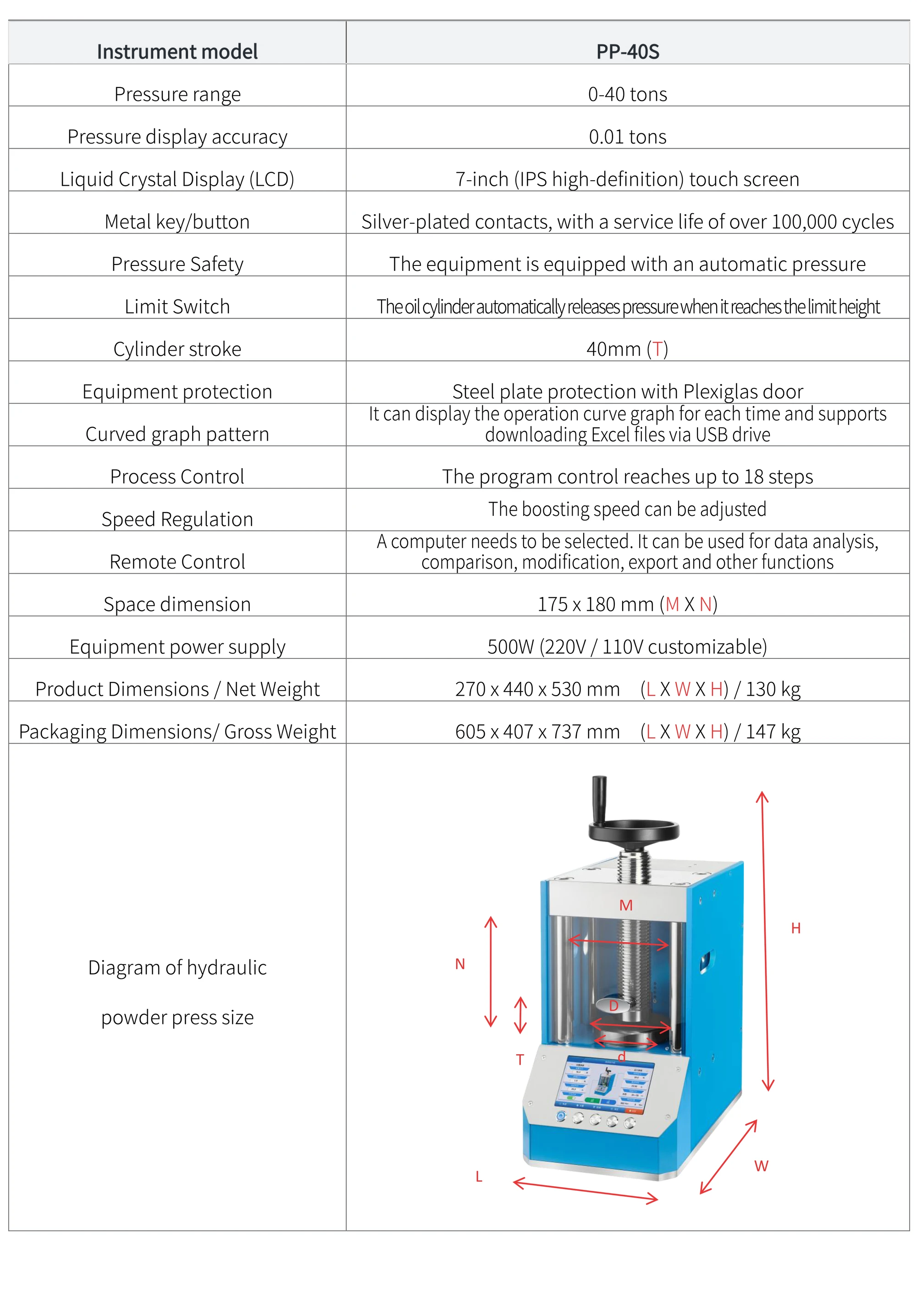

Technical specifications
| Pressing load range | 0-40 tons |
|---|---|
| Pressure display resolution | 0.01 tons |
| LCD display | 7-inch (IPS high-definition) touch screen |
| Overpressure protection | Automatic pressure overload protection |
| Limit switch | Automatic pressure release at the cylinder travel limit |
| Cylinder stroke | 40 mm |
| Equipment protection | Steel guard with acrylic door |
| Curve display | Process curve display with Excel export to a USB drive |
| Program control | Up to 18 program segments; independent control of |
| Speed adjustment | Adjustable pressurization rate |
| Remote control | Optional computer for data analysis, comparison, editing and export |
| Space dimensions | 175 × 180 mm |
| Power supply | 500 W (220 V / 110 V customizable) |
| Product dimensions / net weight | 270 × 440 × 530 mm/130 kg |
| Packaging dimensions / gross weight | 605 × 407 × 737 mm/147 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
