Electric and Automatic Laboratory Presses
PCD-200S 200T Split Type Electric Press
ModelPCD-200S
PCD-200S Split Type Electric Press. Pressing load range: 1-200 ton; Display: 7 inches Touchscreen; Piston diameter: Chrome-Plated Cylinder Ø290 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

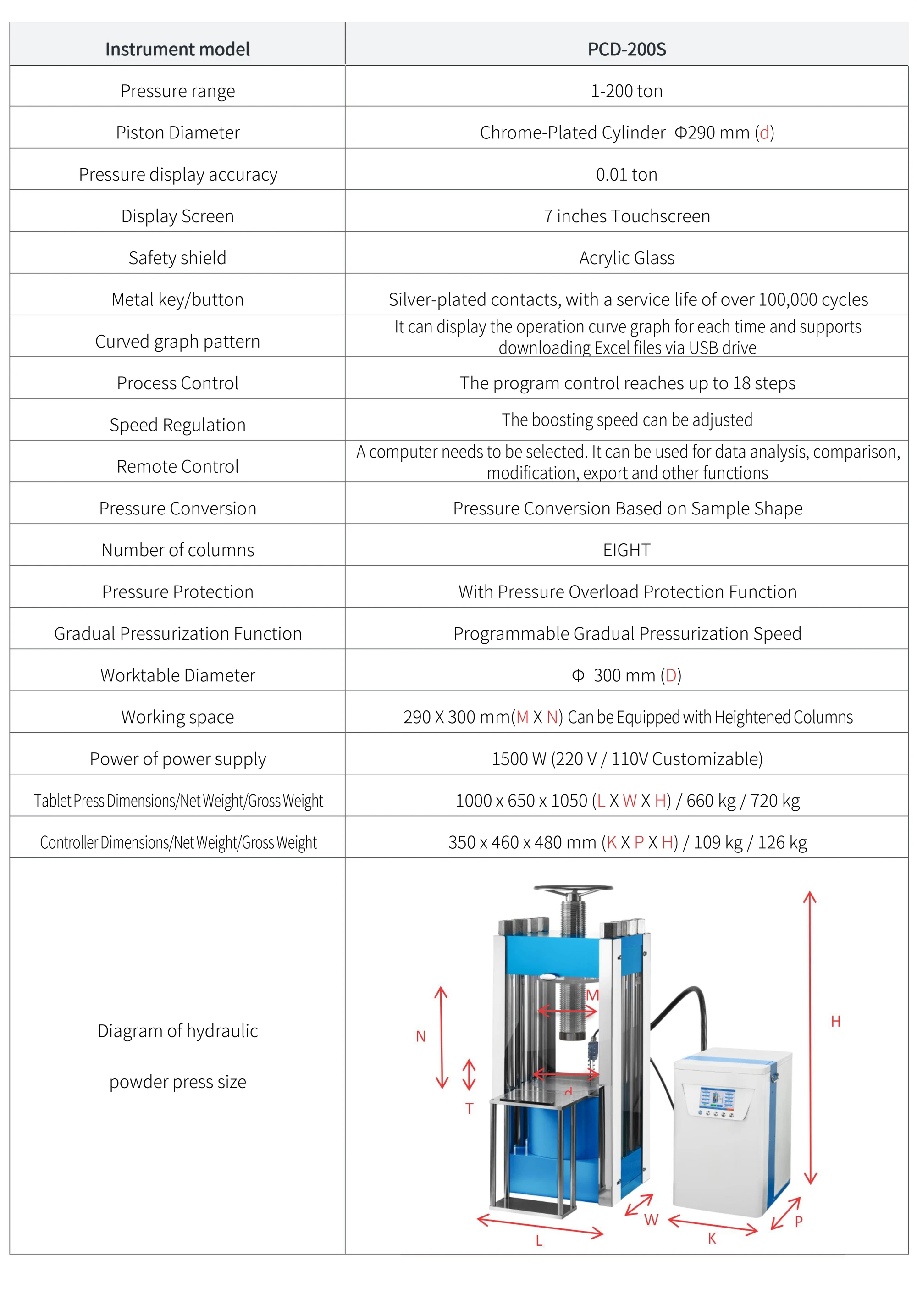

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 200 tonnes |
|---|
Technical specifications
| Pressing load range | 1-200 ton |
|---|---|
| Piston diameter | Chrome-Plated Cylinder Ø290 mm |
| Pressure display resolution | 0.01 ton |
| Display | 7 inches Touchscreen |
| Safety guard | Acrylic guard |
| Curve display | Process curve display with Excel export to a USB drive |
| Program control | Up to 18 program segments; independent control of |
| Speed adjustment | Adjustable pressurization rate |
| Remote control | Optional computer for data analysis, comparison, editing and export |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
