Pressing Dies and Molds
PMQ-B Φ41-80 Ball Press Dies
ModelPMQ-B
PMQ-B Ball Press Dies. Sample size: Ø41-80 mm; Indenter hardness: HRC60 - HRC62; Mold material: Alloy tool steel: Cr12MoV.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.

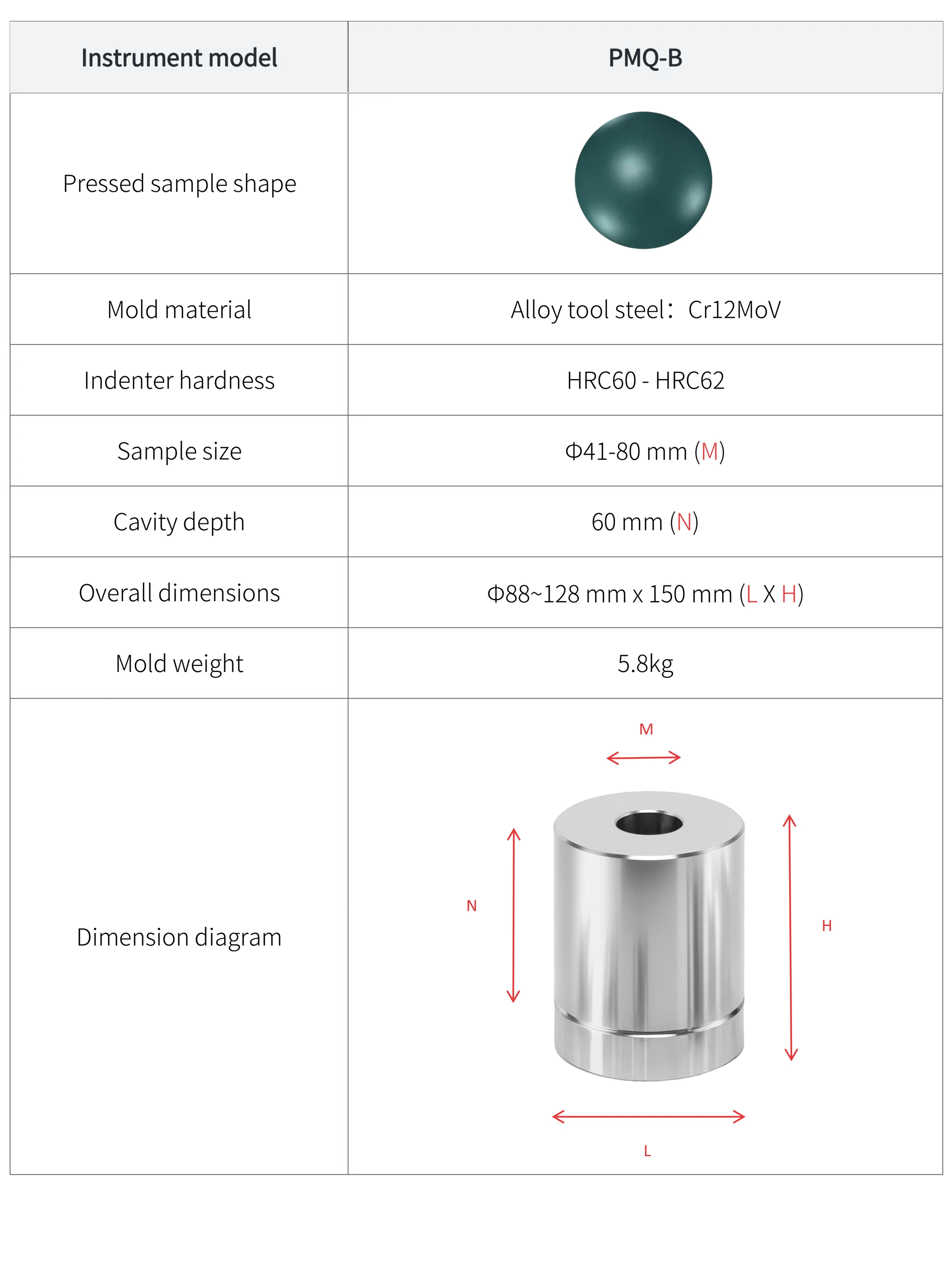

Technical specifications
| Mold material | Alloy tool steel: Cr12MoV |
|---|---|
| Indenter hardness | HRC60 - HRC62 |
| Sample size | Ø41-80 mm |
| Cavity depth | 60 mm |
| Overall dimensions | Ø88~128 mm x 150 mm |
| Mold weight | 5.8 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
