Pressing Dies and Molds
PMY-A Φ3-6 Pellet Press Dies
ModelPMY-A
PMY-A Pellet Press Dies. Indenter hardness: HRC68-70; Mold material: Japan High-Speed Tool Steel ASSAB+17; Cavity depth: 20 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

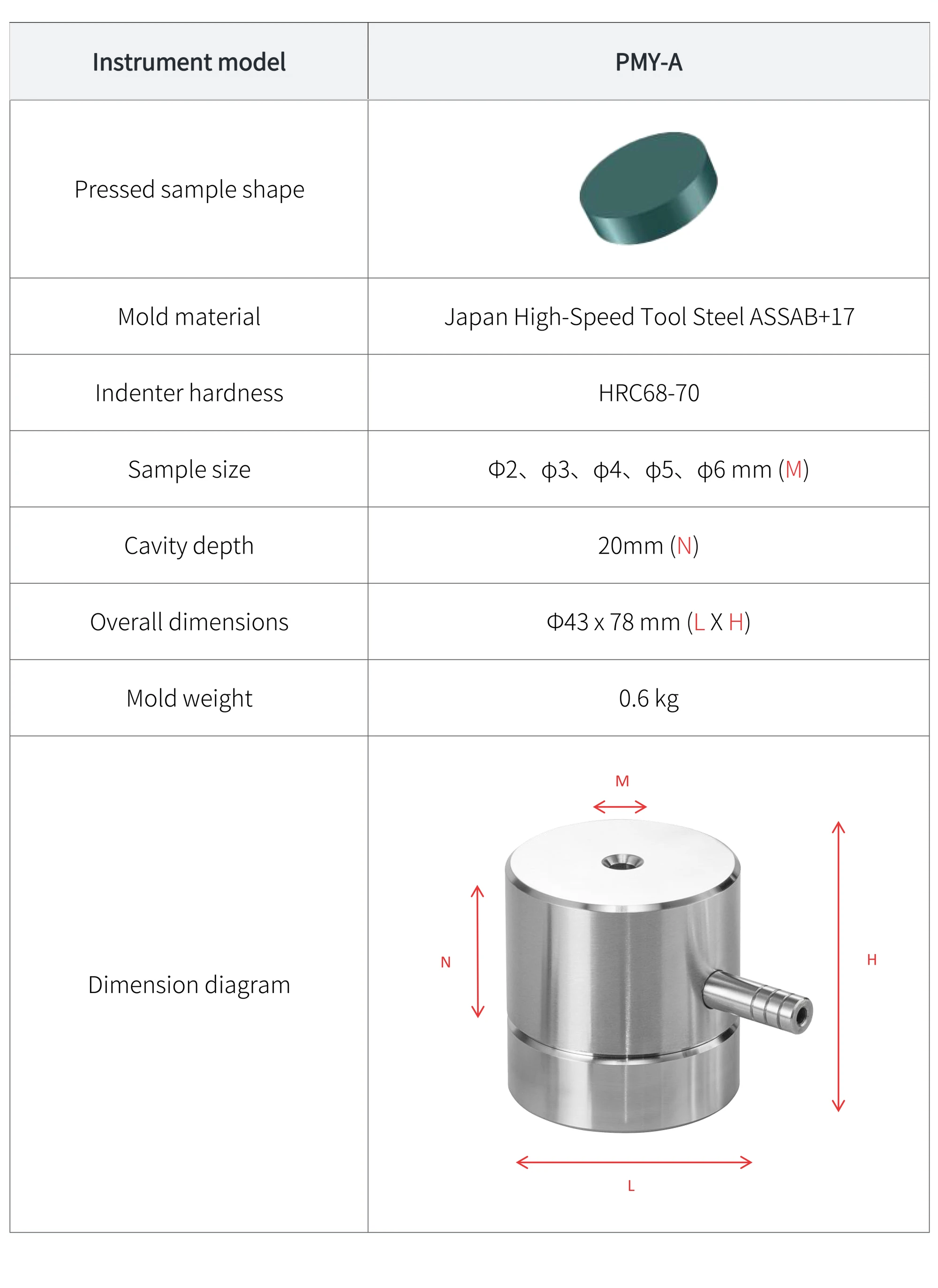

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Mold material | Japan High-Speed Tool Steel ASSAB+17 |
|---|---|
| Indenter hardness | HRC68-70 |
| Cavity depth | 20 mm |
| Overall dimensions | Ø43 × 78 mm |
| Mold weight | 0.6 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
