Pressing Dies and Molds
PCH-H Hot-Press Shaping Platen Die
ModelPCH-H
PCH-H Hot-Press Shaping Platen Die. Heating temperature: Ambient to 500°C; Mold material: 304(Stainless Steel); Overall dimensions: 80 × 80 mm, 180 × 180 mm, 200 × 200 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data

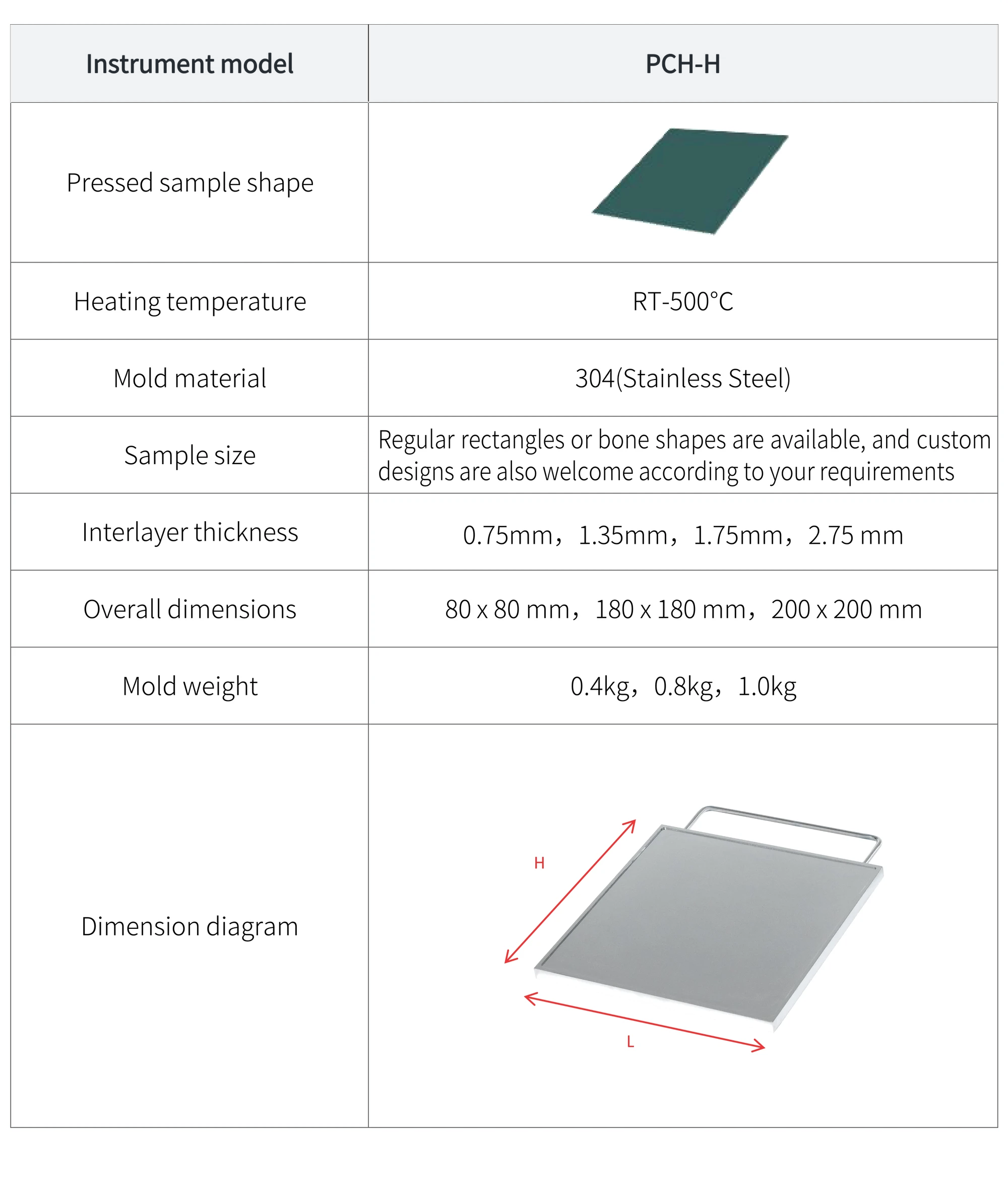

Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Heating temperature | Ambient to 500°C |
|---|---|
| Mold material | 304(Stainless Steel) |
| Interlayer thickness | 0.75 mm, 1.35 mm, 1.75 mm, 2.75 mm |
| Overall dimensions | 80 × 80 mm, 180 × 180 mm, 200 × 200 mm |
| Mold weight | 0.4 kg, 0.8 kg, 1.0 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
