PC-2T 2 T Screw-Operated Pellet Press
ModelPC-2T
PC-2T Screw-Operated Pellet Press. Pressing load range: 0-2T (0-20 MPa); Working space: 54 × 55; Maximum piston stroke: 5 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data

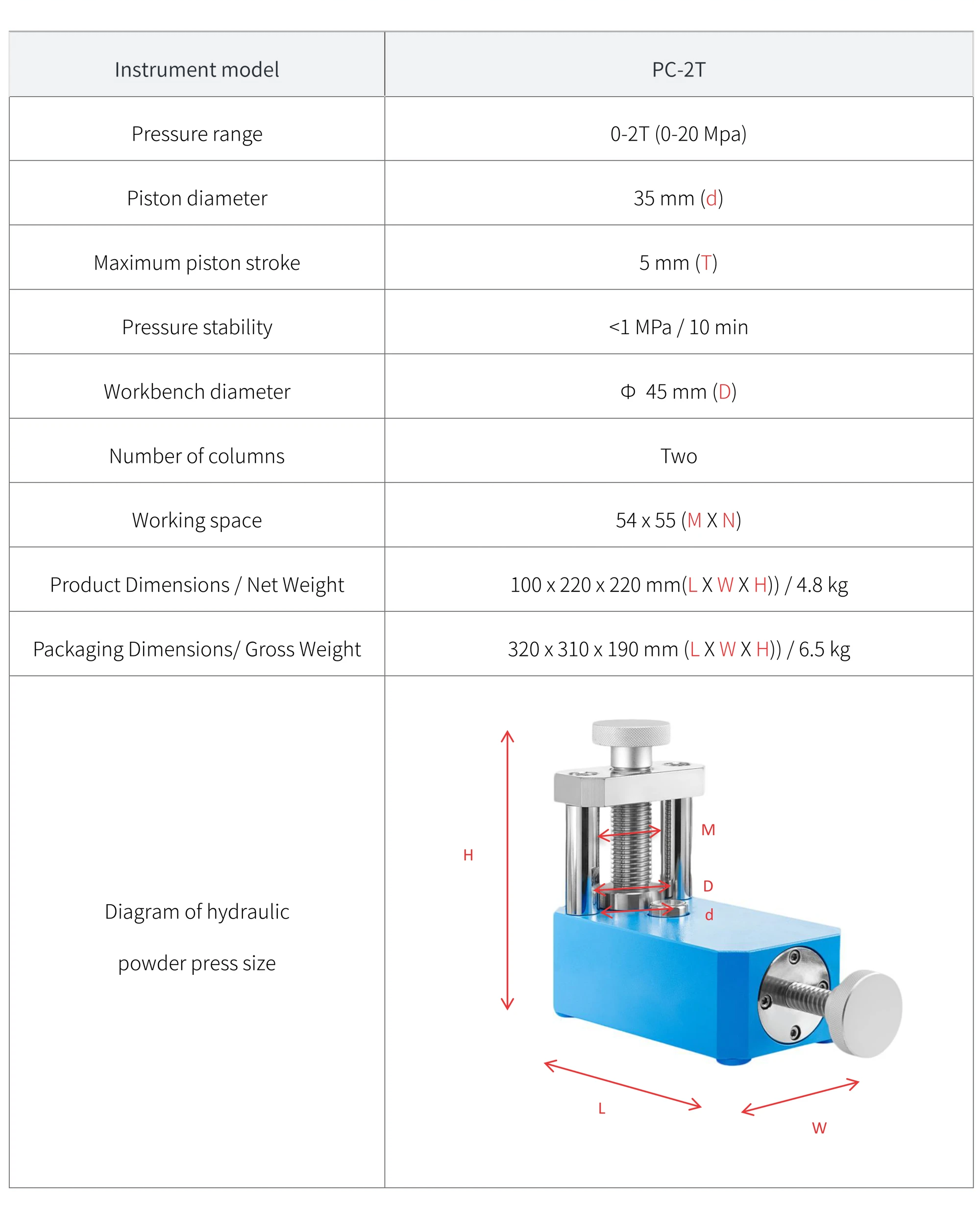

Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 2 tonnes |
|---|
Technical specifications
| Pressing load range | 0-2T (0-20 MPa) |
|---|---|
| Piston diameter | 35 mm |
| Maximum piston stroke | 5 mm |
| Pressure stability | <1 MPa / 10 min |
| Workbench diameter | Ø45 mm |
| Number of columns | 2 |
| Working space | 54 × 55 |
| Product dimensions / net weight | 100 × 220 × 220 mm)/4.8 kg |
| Packaging dimensions / gross weight | 320 × 310 × 190 mm) /6.5 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
