Isostatic Presses
PCD-12J 12T Manual+Electric CIP Press
ModelPCD-12J
PCD-12J Manual+Electric CIP Press. Maximum piston stroke: 40 mm; Display: 4.3 - inches Touchscreen; Piston diameter: Chrome-plated cylinder Ø95 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

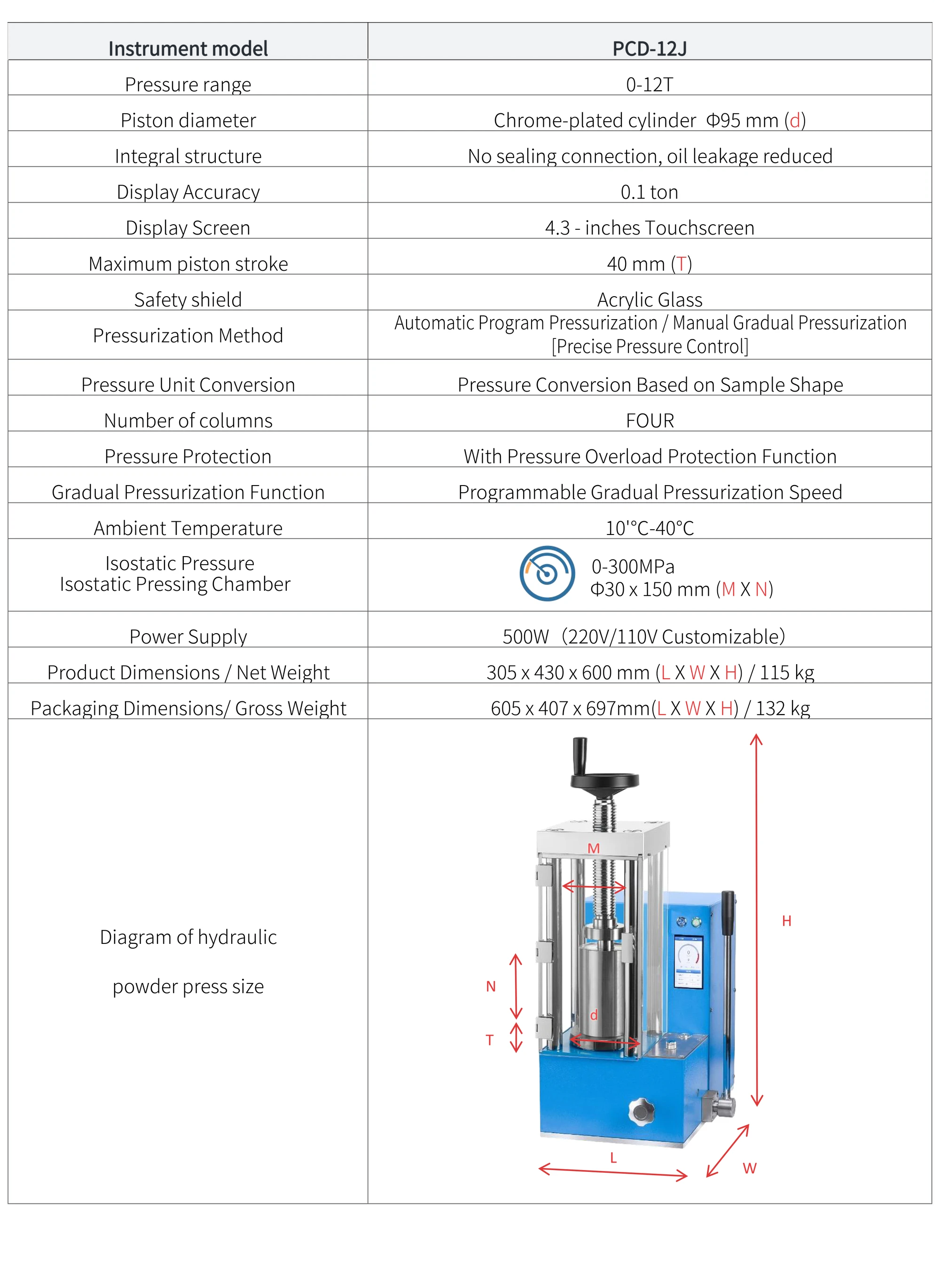

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 12 tonnes |
|---|
Technical specifications
| Piston diameter | Chrome-plated cylinder Ø95 mm |
|---|---|
| Hydraulic body construction | Integral hydraulic body with fewer potential oil-leak points |
| Pressure display resolution | 0.1 ton |
| Display | 4.3 - inches Touchscreen |
| Maximum piston stroke | 40 mm |
| Safety guard | Acrylic guard |
| Pressurization method | Automatic programmed pressurization or manual gradual pressurization |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
