PP-WIP Large-diameter Warm Isostatic Press
ModelPP-WIP
PP-WIP Large-diameter Warm Isostatic Press. Working chamber internal diameter: 100 / 120 / 150 / 200 mm; Working chamber usable depth: 150 / 200 / 250 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

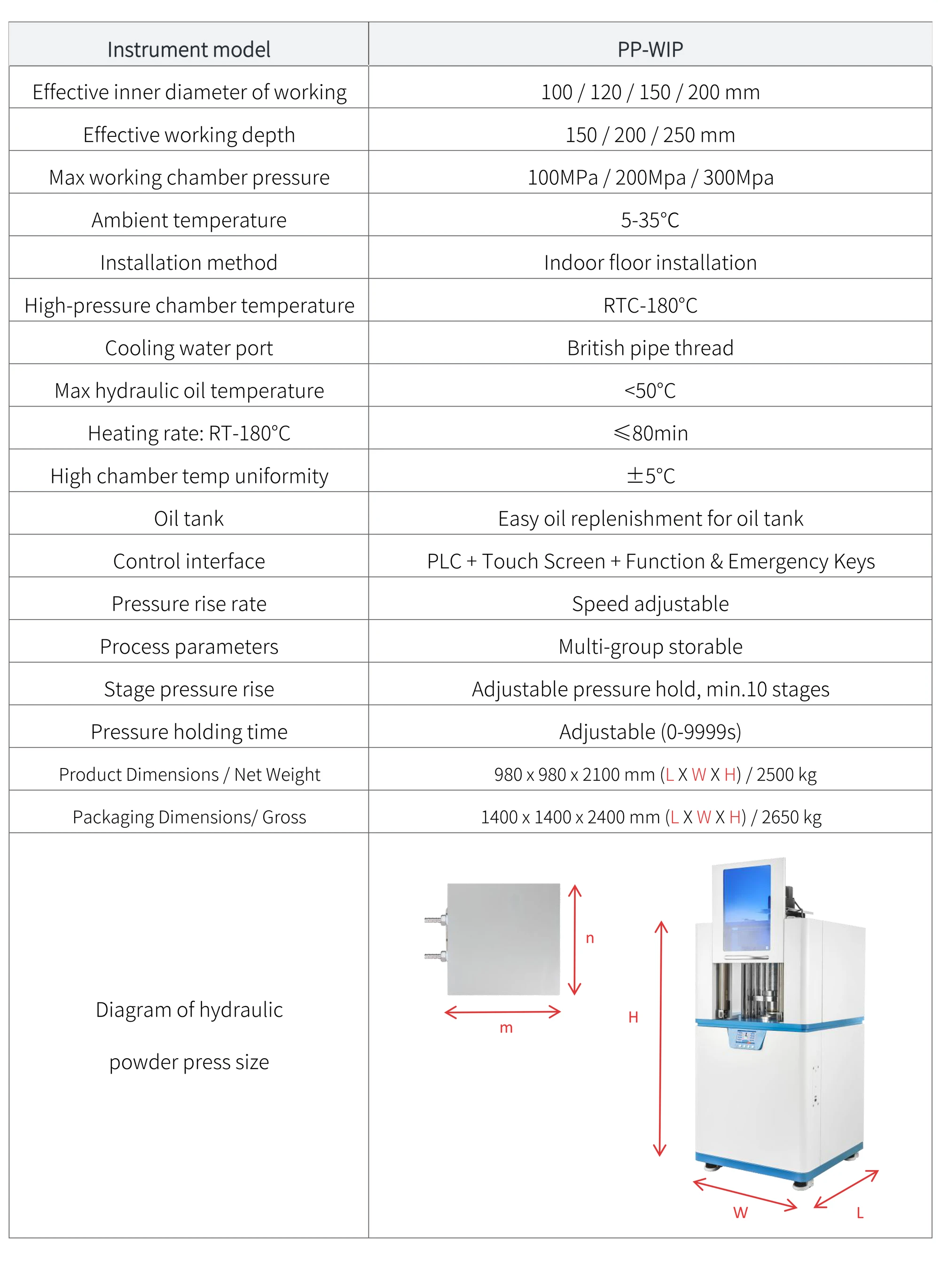

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Working chamber internal diameter | 100 / 120 / 150 / 200 mm |
|---|---|
| Working chamber usable depth | 150 / 200 / 250 mm |
| Maximum chamber pressure | 100 MPa / 200 MPa/300 MPa |
| Ambient temperature | 5-35°C |
| Installation method | Indoor, floor-mounted |
| High-pressure chamber temperature | RTC-180°C |
| Cooling water connection | British pipe thread |
| Maximum hydraulic oil temperature | <50°C |
| Heating time, RT to 180°C | ≤80min |
| Oil tank | Refillable oil tank |

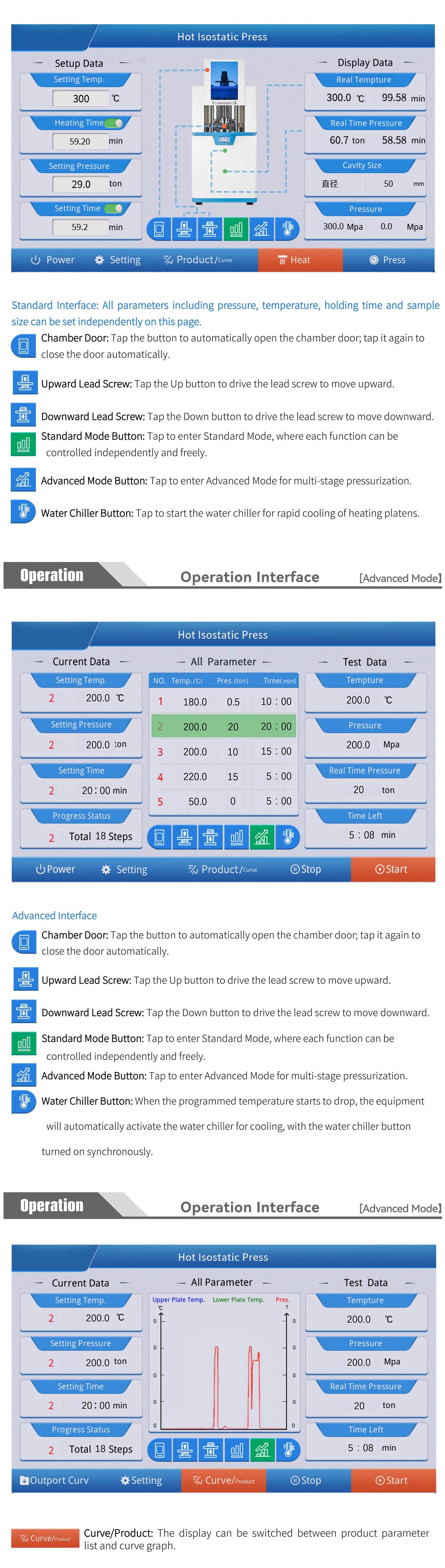

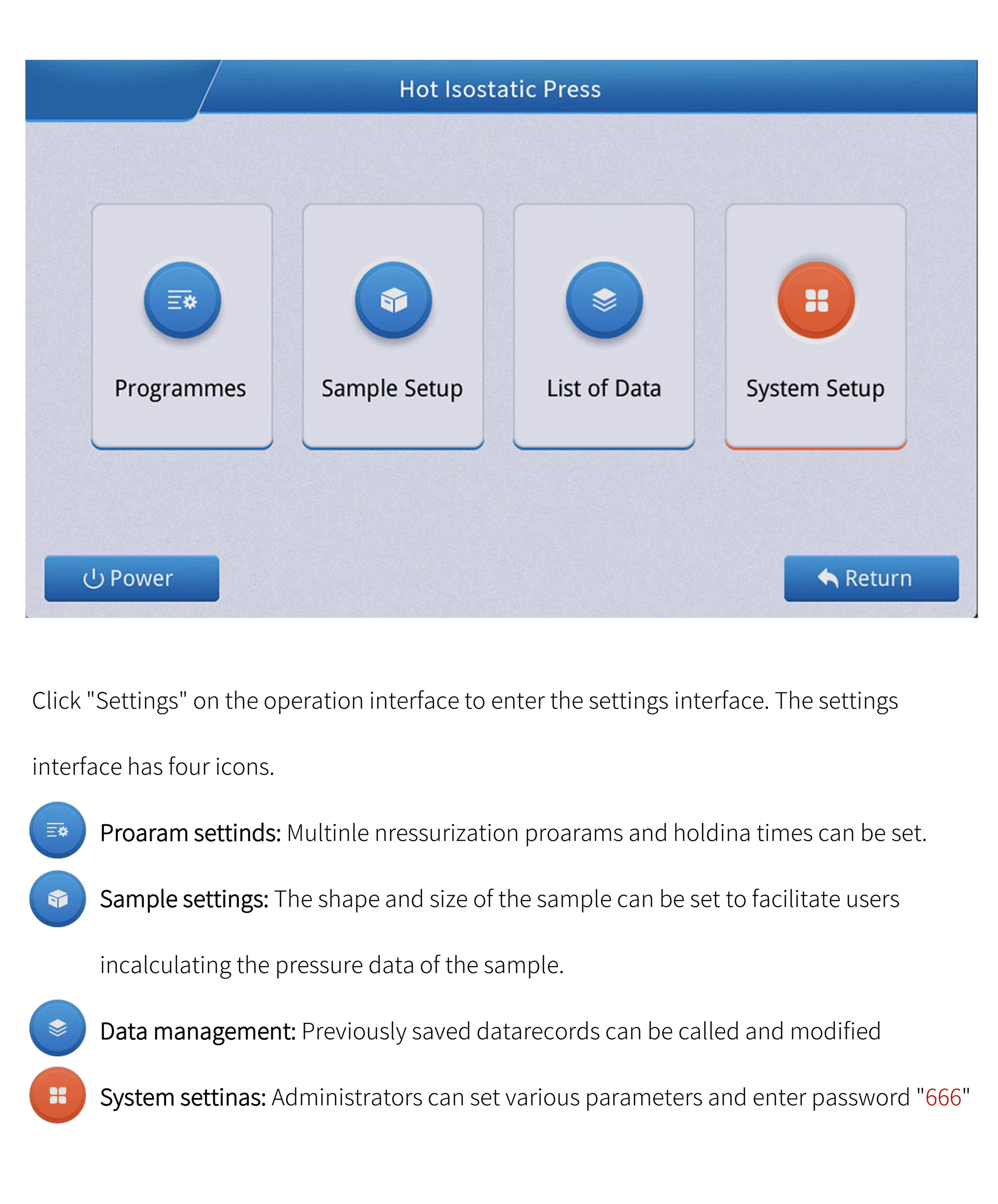

| Control interface | PLC and touchscreen with function and emergency keys |
| Pressure increase rate | Adjustable |
| Process parameter storage | Multiple process parameter sets can be stored |
| Stepped pressurization | Adjustable pressure hold, min.10 stages |
| Product dimensions / net weight | 980 × 980 × 2100 mm / 2500 kg |
| Packaging dimensions / gross weight | 1400 × 1400 × 2400 mm/2650 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
