Isostatic Presses
PC-12J 12T Manual CIP Press
ModelPC-12J
PC-12J Manual CIP Press. Pressing load range: 0-12T; Maximum piston stroke: 40 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

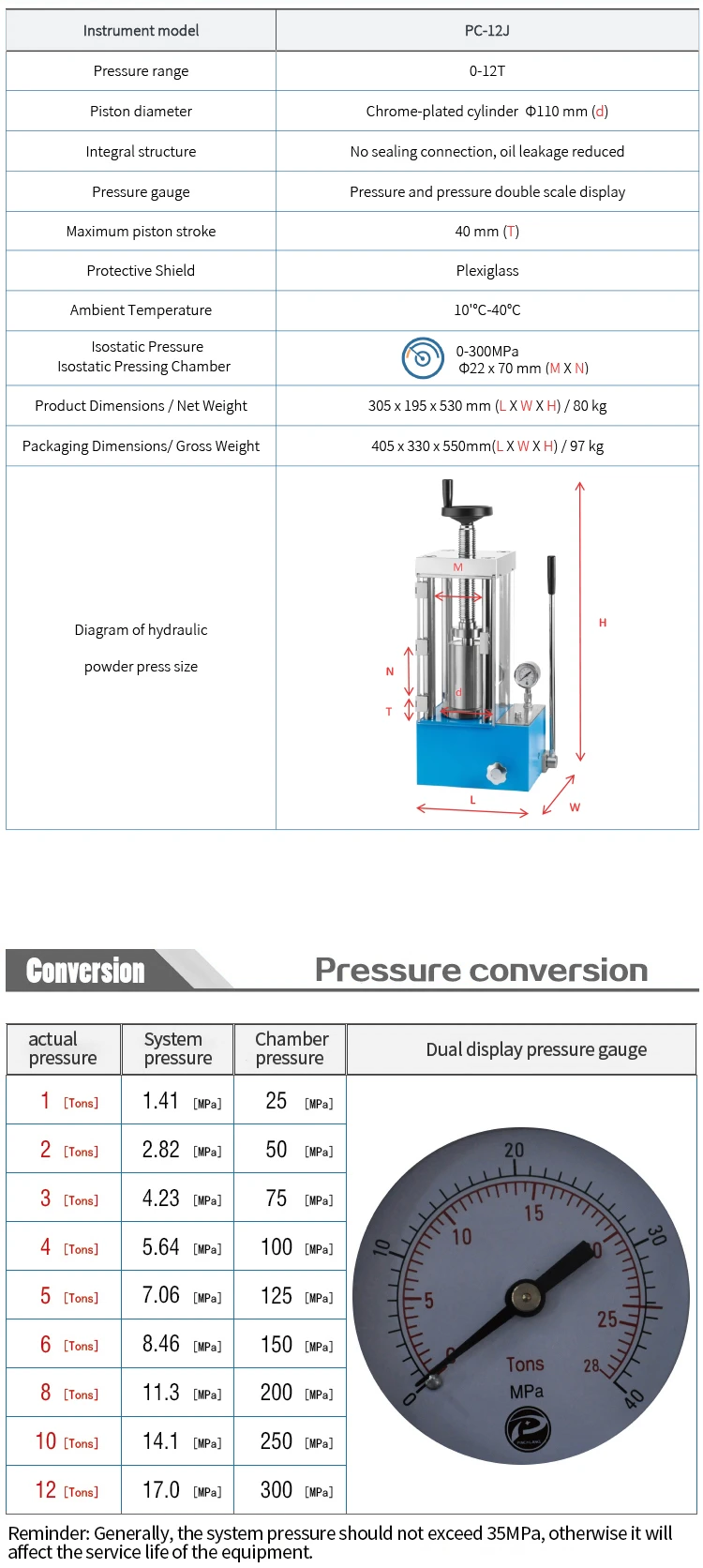

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 12 tonnes |
|---|
Technical specifications
| Pressing load range | 0-12T |
|---|---|
| Hydraulic body construction | Integral hydraulic body with fewer potential oil-leak points |
| Pressure gauge | Dual scales for pressing load and hydraulic pressure |
| Maximum piston stroke | 40 mm |
| Safety guard | Acrylic guard |
| Ambient temperature | 10'°C-40°C |
| Isostatic pressure | 0-300 MPa |
| Isostatic chamber | Ø22 × 70 mm |
| Product dimensions / net weight | 305 × 195 × 530 mm / 80 kg |
| Packaging dimensions / gross weight | 405 × 330 × 550 mm/97 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
