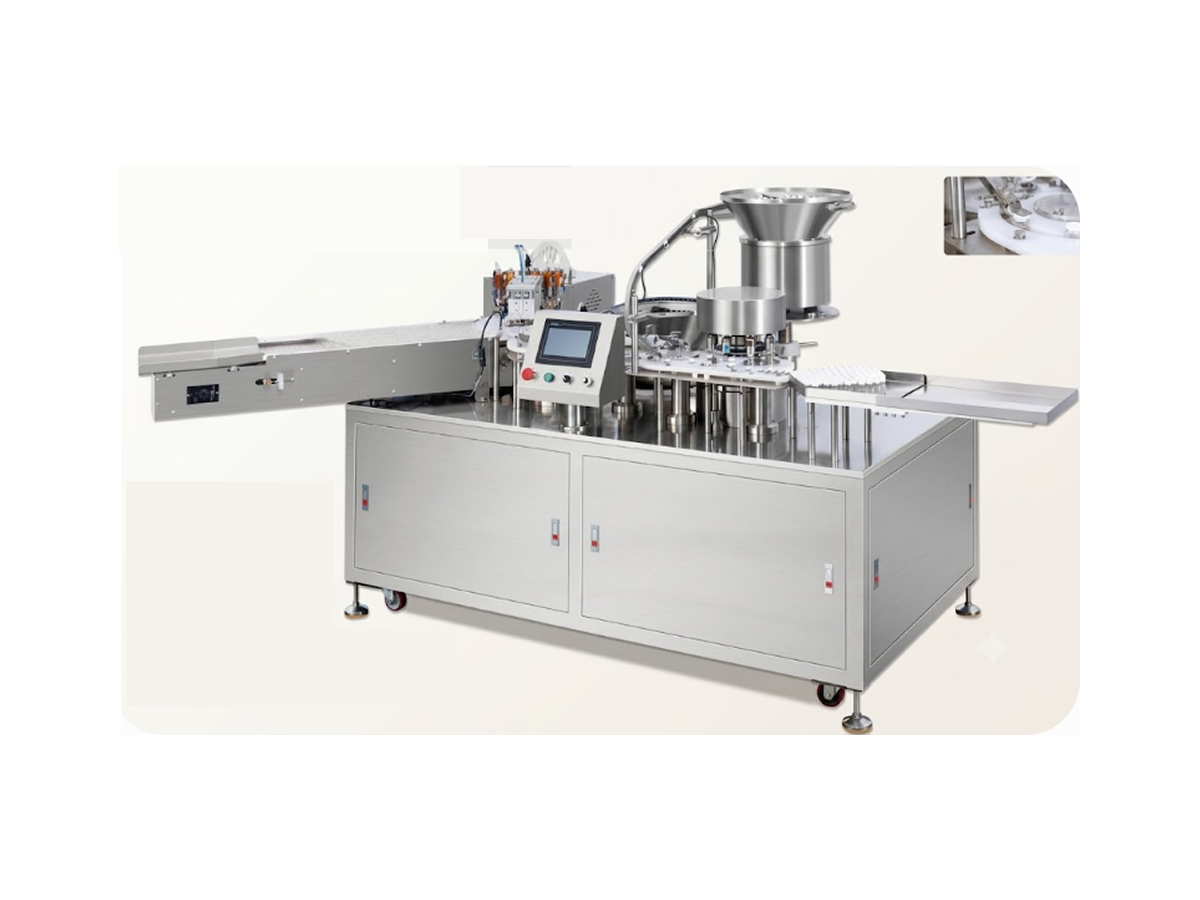

Fully Automatic Liquid Vial Filling and Capping Machine
Designed for single-head automatic filling, stoppering, cap feeding, bottle discharge and labeling integration for liquid products in vials.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
- Cosmetics, medical aesthetics, food, health products and pharmaceuticals
Key product features
-
Original vibration plate lifting frame
-
The whole machine is compact and covers an area of about 1-2.5 square meters.
-
Automatic alarm or shutdown when the inner stopper is missing
-
Same-direction infeed and outfeed design
-
Mechanical explosion-proof bottle device
-
Four-grip capping method, single-knife rotary capping
-
Standard servo indexing and missing-stopper alarm
-
The workflow includes manual bottle feeding, washing and drying, filling, stoppering, capping, bottle discharge, labeling, etc.
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Production capacity | 50-60 bottles/minute (single head filling) |
|---|---|
| Number of filling heads | 1 head |
| Filling accuracy | ≤±3% |
| Filling range | 1ml-10ml |
| Power supply | 220V/50Hz |
| Air source | 0.6-0.8MPa |
| Net weight | 200kg |
| Dimensions | 1500×1300×1500mm |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Fully Automatic Liquid Vial Filling and Capping Machine
Product overview
Designed for single-head automatic filling, stoppering, cap feeding, bottle discharge and labeling integration for liquid products in vials.
Product features
- Original vibration plate lifting frame
- The whole machine is compact and covers an area of about 1-2.5 square meters.
- Automatic alarm or shutdown when the inner stopper is missing
- Same-direction infeed and outfeed design
- Mechanical explosion-proof bottle device
- Four-grip capping method, single-knife rotary capping
- Standard servo indexing and missing-stopper alarm
- The workflow includes manual bottle feeding, washing and drying, filling, stoppering, cap feeding, bottle discharge and labeling.
Scope of application
- Cosmetics
- Medical beauty
- food
- health care products
- Medicines
Technical parameters
| Device model | JJ-MX01S |
|---|---|
| production capacity | 50-60 bottles/minute (single head filling) |
| Number of filling heads | 1 head |
| Filling accuracy | ≤±3% |
| Filling range | 1ml-10ml |
| power supply | 220V/50Hz |
| Air source | 0.6-0.8MPa |
| Net weight | 200kg |
| Dimensions | 1500×1300×1500mm |
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
