XRF Sample Preparation
PP-30X 30T Automatic XRF Press
ModelPP-30X
PP-30X Automatic XRF Press. Pressing load range: 0-30 tons; Mold material: Stainless steel 440C tool steel; Power supply: 500 W (220 V/ 110 V customizable).
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data

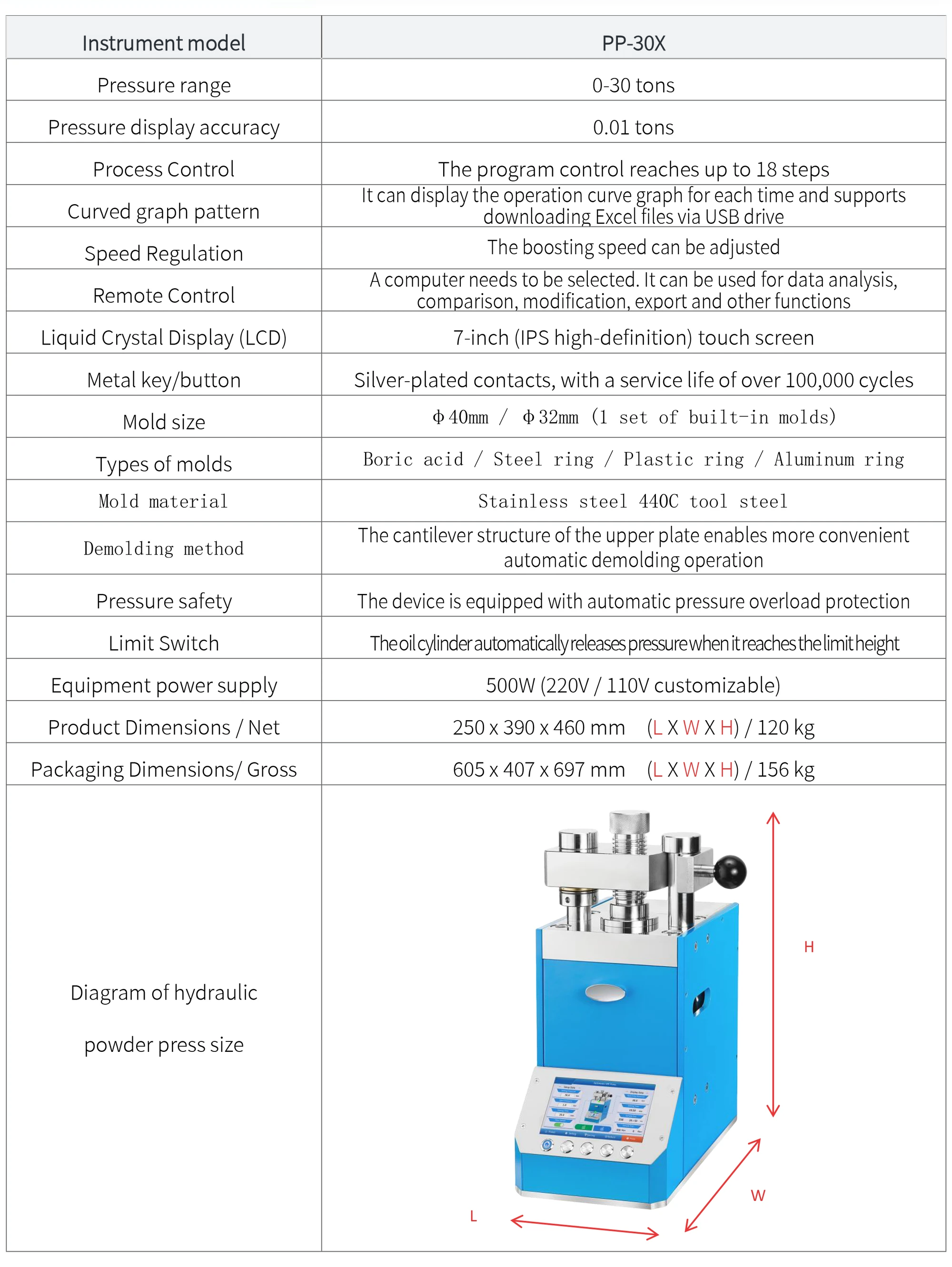

Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 30 tonnes |
|---|
Technical specifications
| Pressing load range | 0-30 tons |
|---|---|
| Pressure display resolution | 0.01 tons |
| Program control | Up to 18 program segments; independent control of |
| Curve display | Process curve display with Excel export to a USB drive |
| Speed adjustment | Adjustable pressurization rate |
| Remote control | Optional computer for data analysis, comparison, editing and export |
| LCD display | 7-inch (IPS high-definition) touch screen |
| Mold material | Stainless steel 440C tool steel |
| Demolding method | Automatic demolding with an upper cantilever structure |
| Overpressure protection | Automatic pressure overload protection |
| Limit switch | Automatic pressure release at the cylinder travel limit |
| Power supply | 500 W (220 V/ 110 V customizable) |
| Product dimensions / net weight | 250 × 390 × 460 mm/120 kg |
| Packaging dimensions / gross weight | 605 × 407 × 697 mm/156 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
