Manual Laboratory Presses
PC-30S 30T Digital Manual Press
ModelPC-30S
PC-30S Digital Manual Press. Pressing load range: 0-30T; Working space: 92 × 160 mm; Maximum piston stroke: 30 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

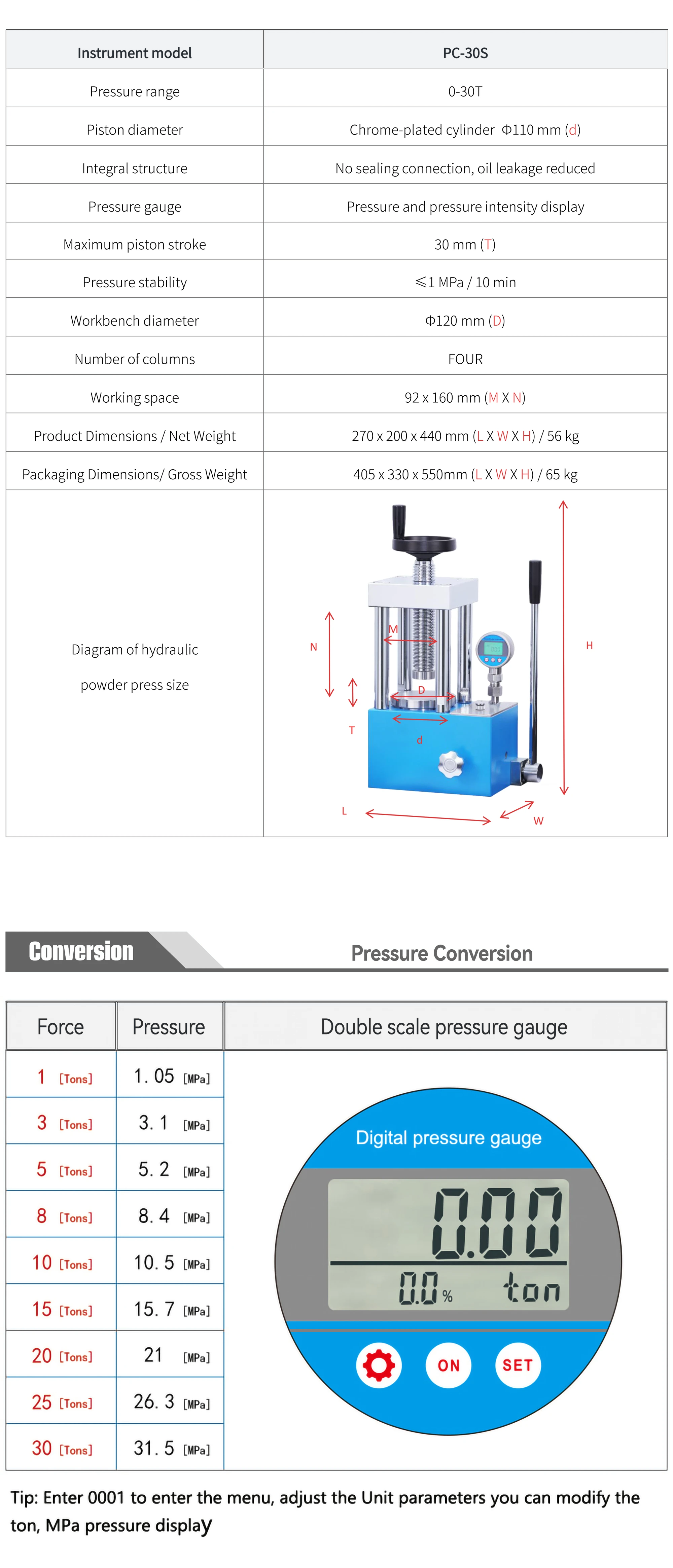

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Pressing
| Listed pressing load | 30 tonnes |
|---|
Technical specifications
| Pressing load range | 0-30T |
|---|---|
| Piston diameter | Chrome-plated cylinder Ø110 mm |
| Hydraulic body construction | Integral hydraulic body with fewer potential oil-leak points |
| Maximum piston stroke | 30 mm |
| Pressure stability | ≤1 MPa / 10 min |
| Workbench diameter | Ø120 mm |
| Number of columns | 4 |
| Working space | 92 × 160 mm |
| Product dimensions / net weight | 270 × 200 × 440 mm /56 kg |
| Packaging dimensions / gross weight | 405 × 330 × 550 mm / 65 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
