Laboratory Presses
PC-2NS Digital Manual Coin Cell Crimper
ModelPC-2NS
PC-2NS Digital Manual Coin Cell Crimper. Pressing load range: 0-2T; Crimping load: Generally between 0.8 and 1.2 tons; Piston diameter: Chromed oil cylinder Ø32 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.

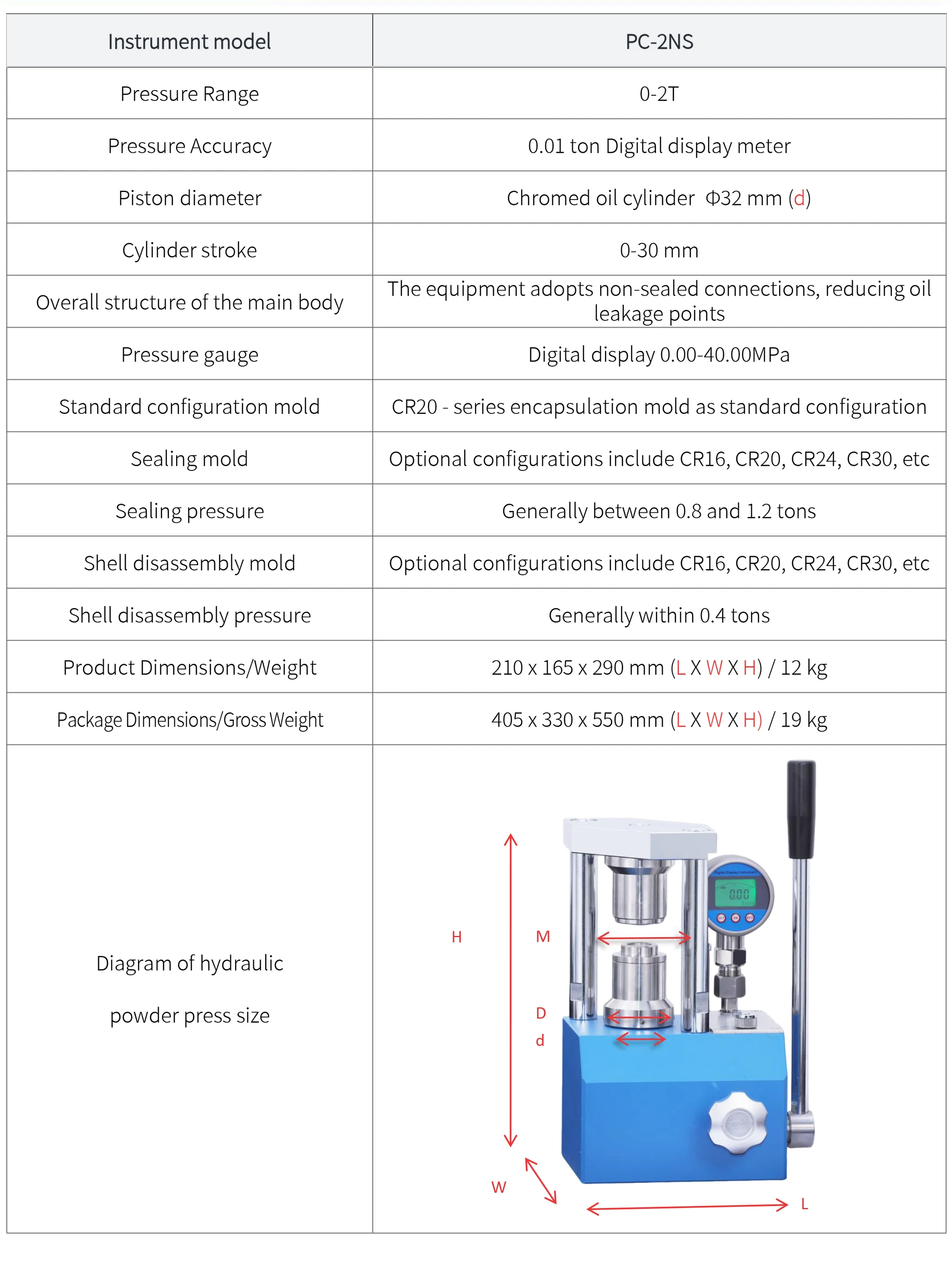

Technical specifications
| Pressing load range | 0-2T |
|---|---|
| Stated load precision | 0.01 ton Digital display meter |
| Piston diameter | Chromed oil cylinder Ø32 mm |
| Cylinder stroke | 0-30 mm |
| Hydraulic body construction | Integral hydraulic body with fewer potential oil-leak points |
| Pressure gauge | Digital display 0.00-40.00 MPa |
| Standard die | CR20 - series encapsulation mold as standard configuration |
| Crimping die options | Optional configurations include CR16, CR20, CR24, CR30, etc |
| Crimping load | Generally between 0.8 and 1.2 tons |
| Decrimping die options | Optional configurations include CR16, CR20, CR24, CR30, etc |
| Decrimping load | Generally within 0.4 tons |
| Product dimensions / net weight | 210 × 165 × 290 mm / 12 kg |
| Packaging dimensions / gross weight | 405 × 330 × 550 mm/19 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
