PP-600ZE Automatic Vacuum Hot Press

Name: PP-600ZE Automatic Vacuum Hot Press | LabSova
Brand: LabSova
SKU: PP-600ZE

ModelPP-600ZE

PP-600ZE Automatic Vacuum Hot Press. Pressing load range: 0.01-30 T; Heating platen dimensions: 300 × 300 mm; Working space: 320 × 70 mm.

Request a Quote View Specifications

Final configuration confirmed before quotation
Customization and accessories reviewed by application
Export packing and documentation available on request

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical data

Technical specifications

Specifications are organized by system so different equipment types can present the parameters that matter for their application.

Technical specifications

Pressing load range	0.01-30 T
Stated load precision	0.01 T
Vacuum	-0.1 MPa
Display	7- inches Touch Screen
Curve display	Process curve display with Excel export to a USB drive
Program control	Up to 18 program segments; independent control of pressure, temperature, vacuum, gas inlet, water cooling
Water cooling control	Manual or programmed water cooling
Speed adjustment	Adjustable pressurization and heating rates
Remote control	Optional computer for data analysis, comparison, editing and export
Heating platen dimensions	300 × 300 mm
Working space	320 × 70 mm
Chamber door size	380 × 200 mm
Power supply	220 V/110 V Customizable
Vacuum pump dimensions / weight	490 × 230 × 340 mm /14 kg
Product dimensions / net weight	580 × 680 × 1200 mm/580 kg
Packaging dimensions / gross weight	900 × 800 × 1400 mm/650 kg

Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical specifications

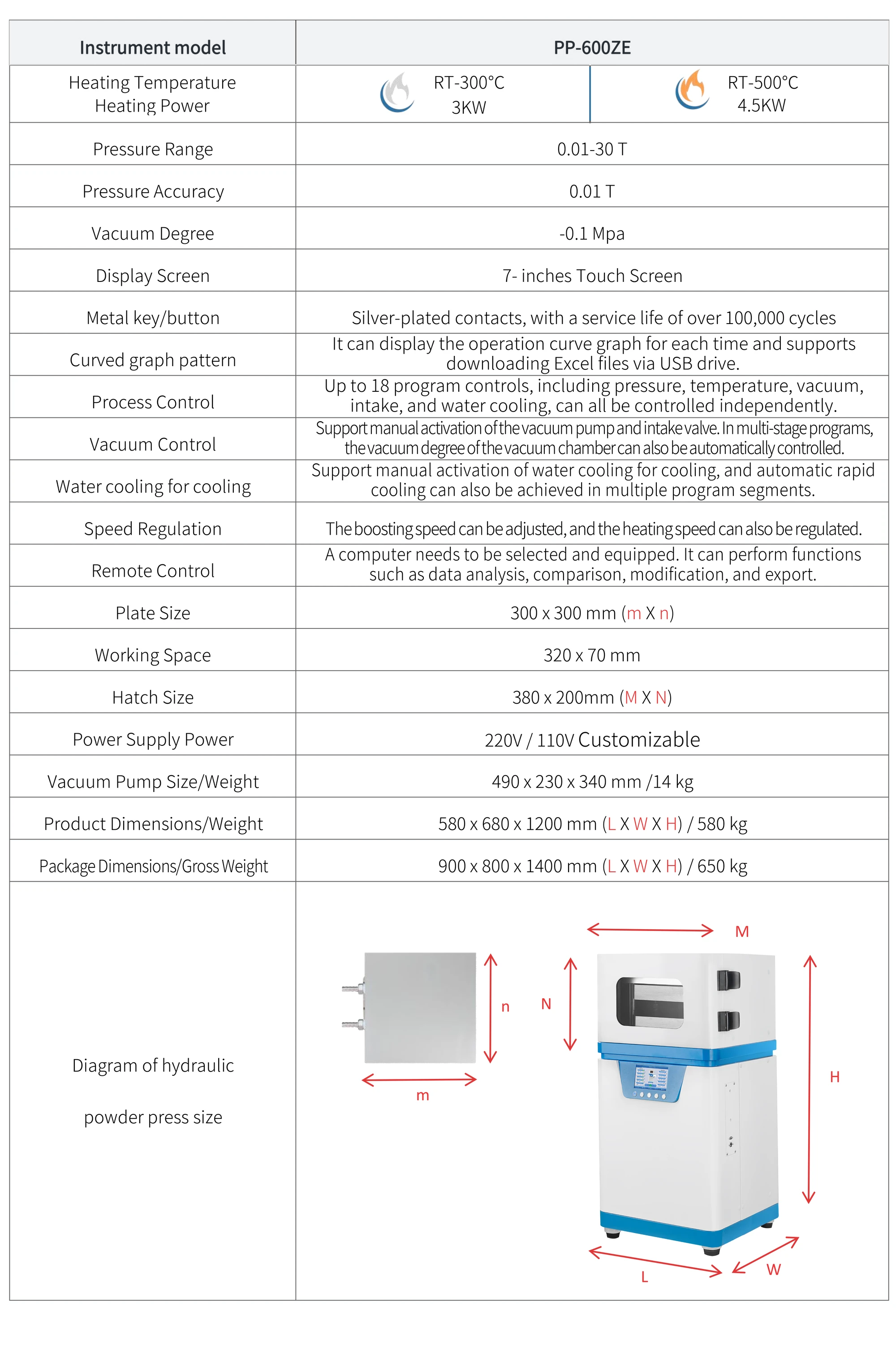

PP-600ZE - manufacturer specification sheet

Product details

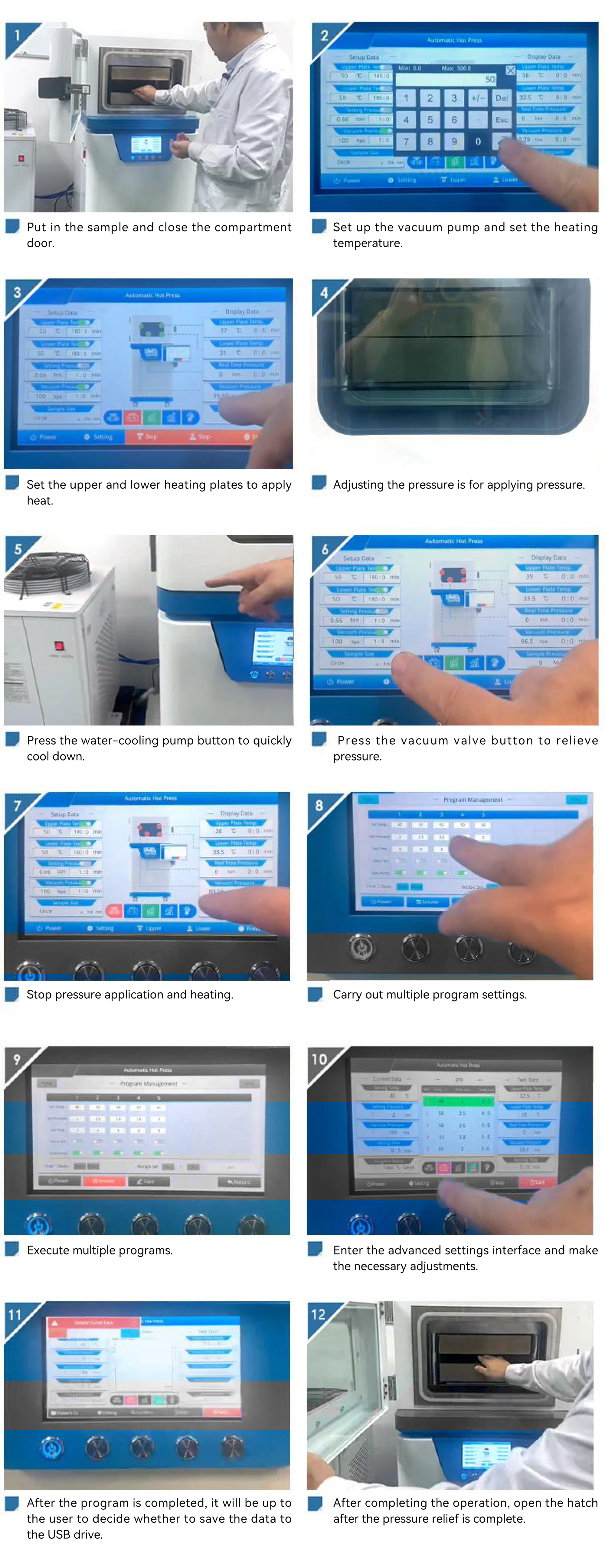

PP-600ZE - manufacturer product illustration
