![PP-600F Automatic Hot Press[400mm] - Compact Version](https://cdn.labsova.com/products/tianjin17/labsova-neutral-20261022/f434fa10344c0e0cadc76d8e-card.webp)
Hot Presses
PP-600F Automatic Hot Press[400mm] - Compact Version
ModelPP-600F
PP-600F Automatic Hot Press - Compact Version. Pressing load range: 0.01-50.0 T; Working space: 400 × 80 mm; Display: 7-inch touchscreen.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

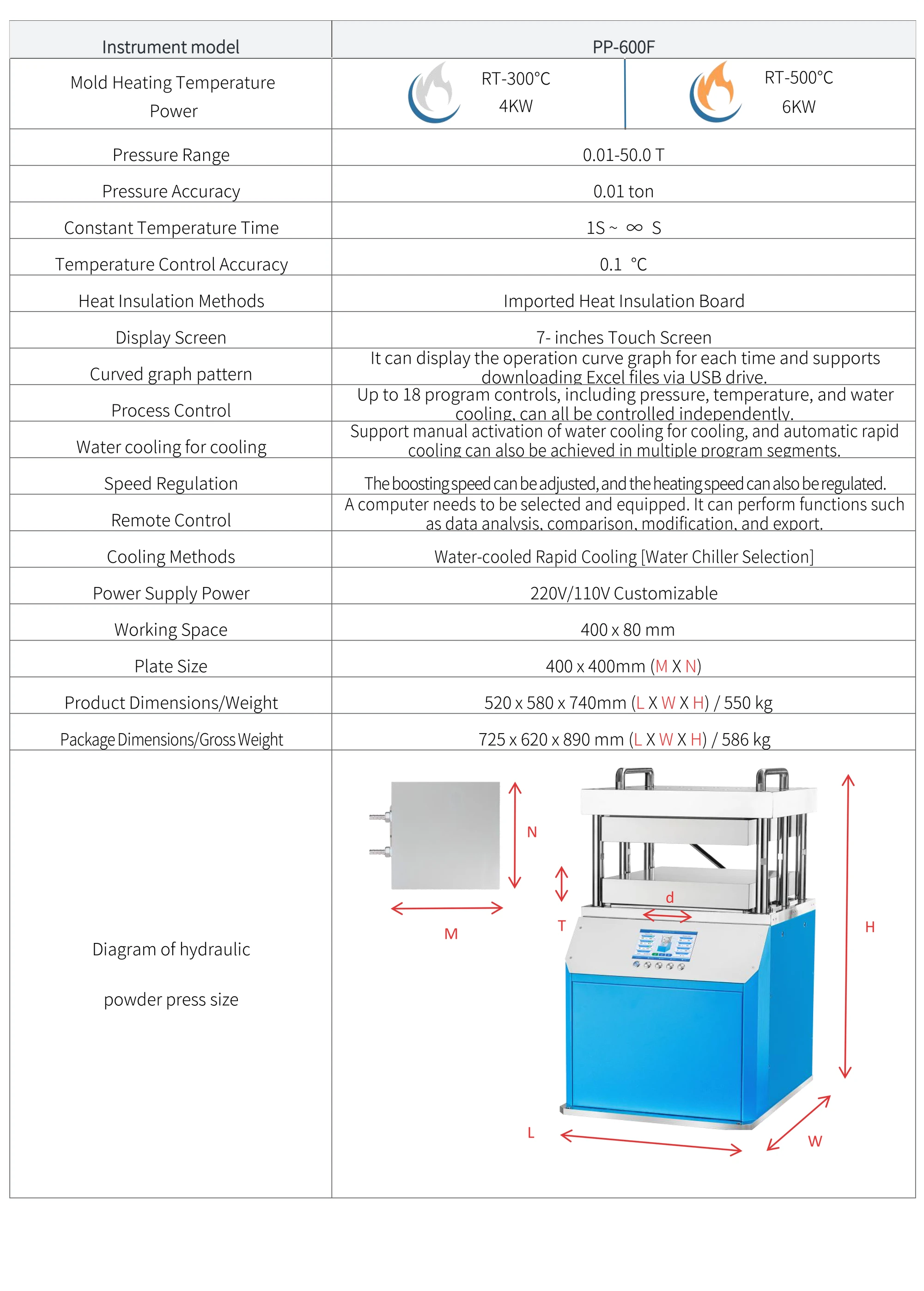

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Pressing load range | 0.01-50.0 T |
|---|---|
| Stated load precision | 0.01 ton |
| Temperature control precision | 0.1 °C |
| Thermal insulation | Thermal insulation board |
| Display | 7-inch touchscreen |
| Curve display | Process curve display with Excel export to a USB drive |
| Program control | Up to 18 program segments; independent control of pressure, temperature, water cooling |
| Water cooling control | Manual or programmed water cooling |
| Speed adjustment | Adjustable pressurization and heating rates |
| Remote control | Optional computer for data analysis, comparison, editing and export |
| Cooling method | Water cooling; external water chiller optional |
| Power supply | 220 V/110 V Customizable |
| Working space | 400 × 80 mm |
| Product dimensions / net weight | 520 × 580 × 740 mm /550 kg |
| Packaging dimensions / gross weight | 725 × 620 × 890 mm / 586 kg |
Heating configurations
| 300°C heating configuration (option) | Ambient to 300°C; 4 kW |
|---|---|
| 500°C heating configuration (option) | Ambient to 500°C; 6 kW |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
