Hot Presses

PCH-600D2 Manual Hot Press[200mm]

Name: PCH-600D2 Manual Hot Press[200mm] | LabSova
Brand: LabSova
SKU: PCH-600D2

ModelPCH-600D2

PCH-600D2 Manual Hot Press. Pressing load range: 0-30T; Mold dimensions: 200 × 200 mm; Working space: 180 × 190 mm.

Request a Quote View Specifications

Final configuration confirmed before quotation
Customization and accessories reviewed by application
Export packing and documentation available on request

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical data

Technical specifications

Specifications are organized by system so different equipment types can present the parameters that matter for their application.

Technical specifications

Pressing load range	0-30T
Stated load precision	0.01 ton
Piston diameter	Chrome-Plated Oil Cylinder Ø110 mm
Hydraulic body construction	Integral hydraulic body with fewer potential oil-leak points
Temperature control precision	0.1 °C
Display	7-inch touchscreen
Program control	Up to 18 program segments; independent control of pressure, temperature, water cooling
Water cooling control	Manual or programmed water cooling
Speed adjustment	Adjustable pressurization and heating rates
Thermal insulation	Thermal insulation board
Cooling method	Water cooling; external water chiller optional
Mold dimensions	200 × 200 mm
Working space	180 × 190 mm
Power supply	220 V / 110 V Customizable
Temperature controller dimensions / net / gross weight	280 × 240 × 165 mm / 5.5 kg /7.5 kg
Press dimensions / net / gross weight	380 × 240 × 720 mm / 185 kg/220 kg
Water chiller dimensions / weight	550 × 340 × 430 mm / 11 kg

Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical specifications

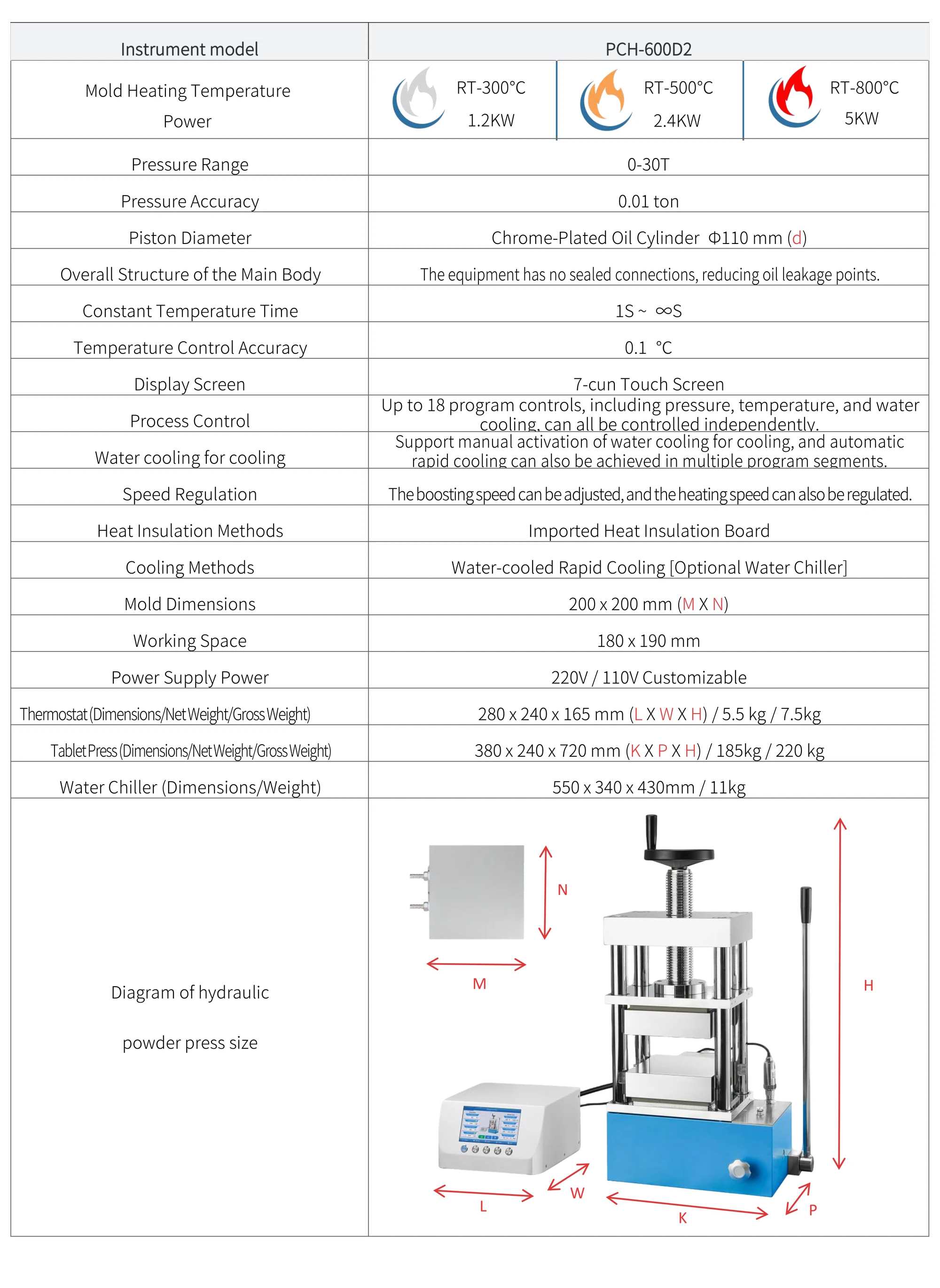

PCH-600D2 - manufacturer specification sheet

Product details

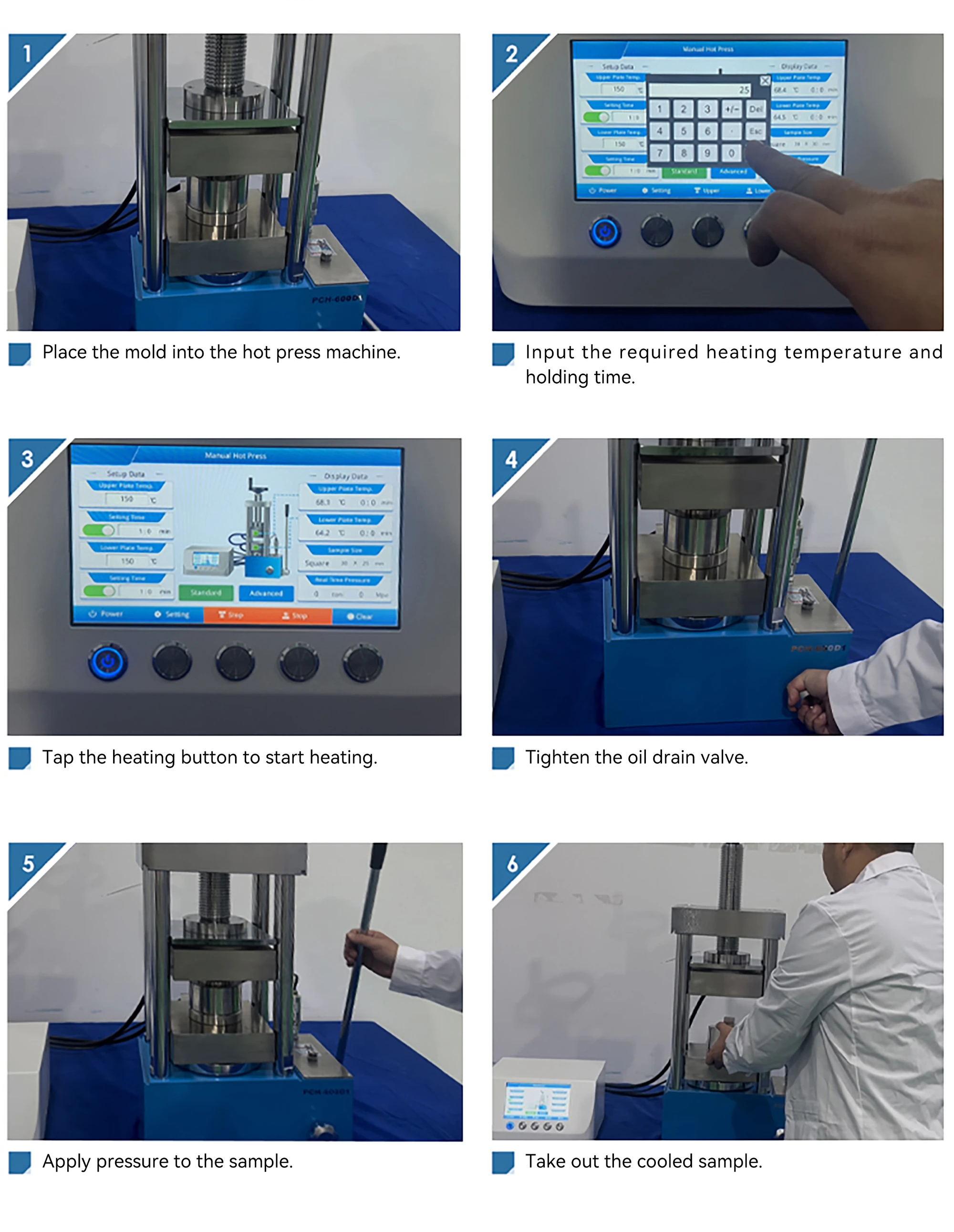

PCH-600D2 - manufacturer product illustration
