Hot Presses
PCH-600B Single Plate Hot Press
ModelPCH-600B
PCH-600B Single Plate Hot Press. Pressing load range: 0-24T; Mold dimensions: Single Flat Plate Heating 100 × 100 mm; Piston diameter: Chrome-Plated Oil Cylinder Ø95 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data

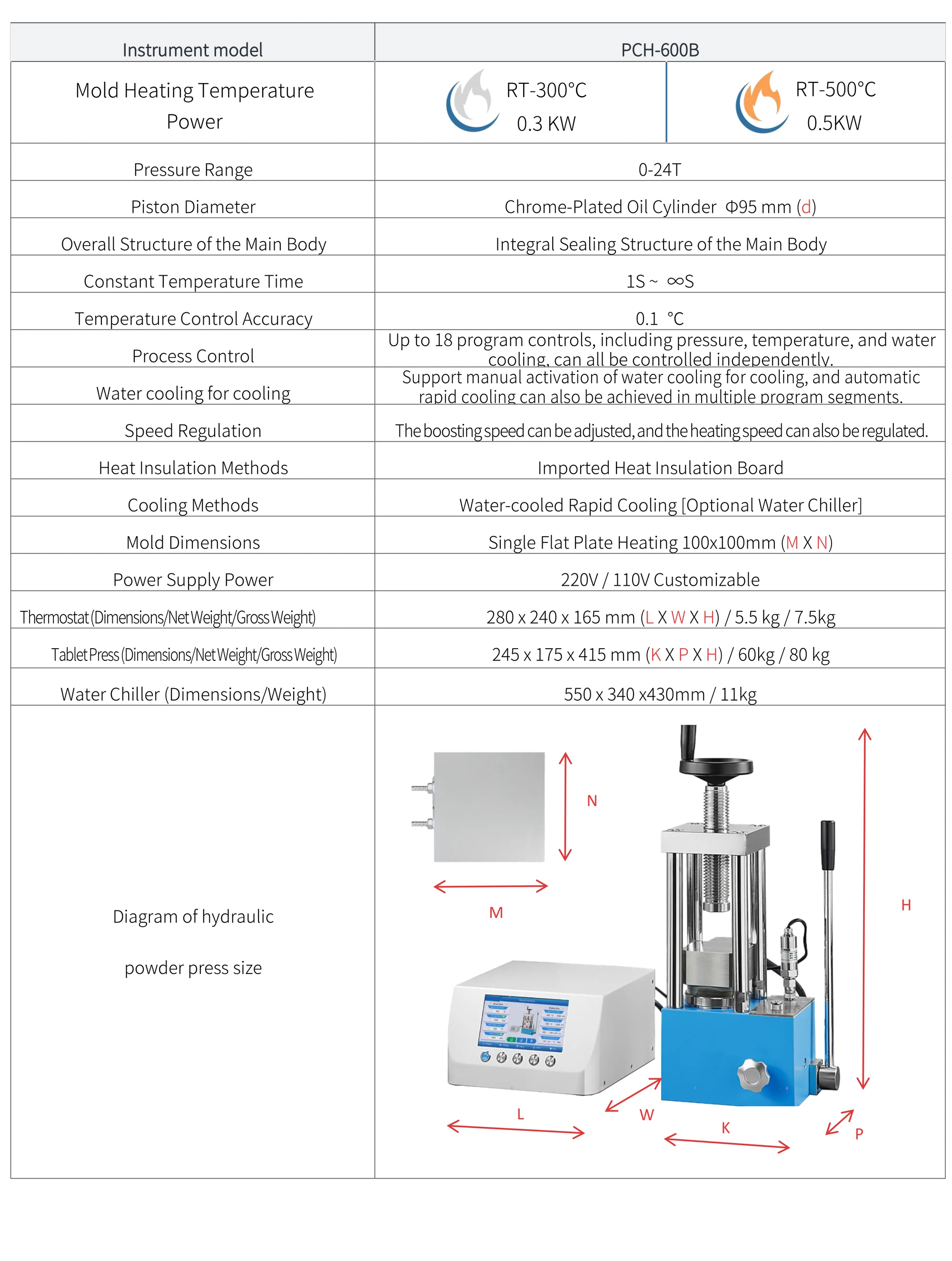

Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Pressing load range | 0-24T |
|---|---|
| Piston diameter | Chrome-Plated Oil Cylinder Ø95 mm |
| Hydraulic body construction | Integral sealed hydraulic body |
| Temperature control precision | 0.1 °C |

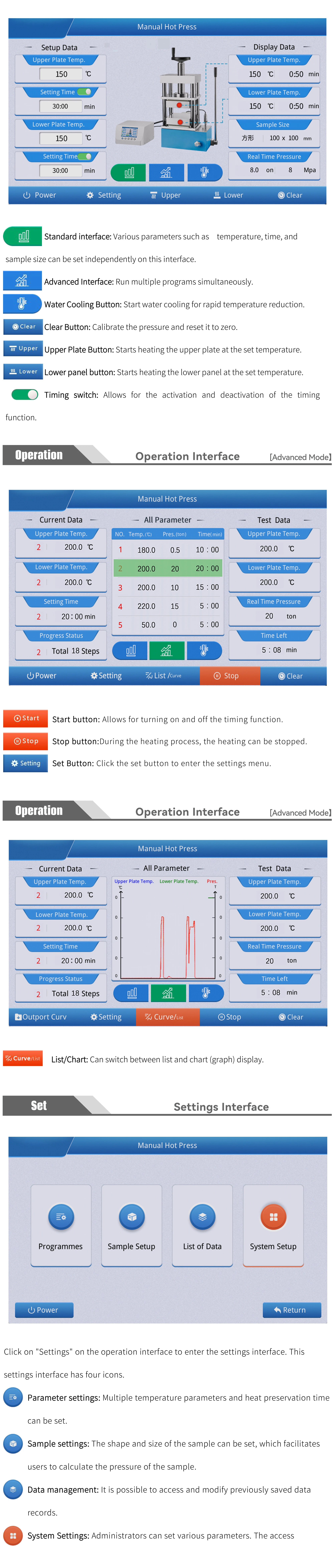

| Program control | Up to 18 program segments; independent control of pressure, temperature, water cooling |
| Water cooling control | Manual or programmed water cooling |
| Speed adjustment | Adjustable pressurization and heating rates |
| Thermal insulation | Thermal insulation board |
| Cooling method | Water cooling; external water chiller optional |
| Mold dimensions | Single Flat Plate Heating 100 × 100 mm |
| Power supply | 220 V / 110 V Customizable |
| Temperature controller dimensions / net / gross weight | 280 × 240 × 165 mm / 5.5 kg/7.5 kg |
| Press dimensions / net / gross weight | 245 × 175 × 415 mm / 60 kg /80 kg |
| Water chiller dimensions / weight | 550 × 340 × 430 mm /11 kg |
Heating configurations
| 300°C heating configuration (option) | Ambient to 300°C; 0.3 kW |
|---|---|
| 500°C heating configuration (option) | Ambient to 500°C; 0.5 kW |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
