PCH-600A Pellet Hot Press

Name: PCH-600A Pellet Hot Press | LabSova
Brand: LabSova
SKU: PCH-600A

ModelPCH-600A

PCH-600A Pellet Hot Press. Pressing load range: 0-15T; Piston diameter: Chrome-Plated Oil Cylinder Ø80 mm; Power supply: 220 V / 110 V Customizable.

Request a Quote View Specifications

Final configuration confirmed before quotation
Customization and accessories reviewed by application
Export packing and documentation available on request

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical data

Technical specifications

Specifications are organized by system so different equipment types can present the parameters that matter for their application.

Technical specifications

Pressing load range	0-15T
Stated load precision	0.01 ton
Piston diameter	Chrome-Plated Oil Cylinder Ø80 mm
Hydraulic body construction	Integral sealed hydraulic body
Program control	Up to 18 program segments; independent control of pressure, temperature, water cooling
Water cooling control	Manual or programmed water cooling
Speed adjustment	Adjustable pressurization and heating rates
Thermal insulation	Thermal insulation board
Cooling method	Water cooling; external water chiller optional
Mold cavity dimensions	Inner Hole <20 mm [Larger Sizes Can Also Be Customized]
Power supply	220 V / 110 V Customizable
Temperature controller dimensions / net / gross weight	280 × 240 × 165 mm /5.5 kg/7.5 kg
Press dimensions / net / gross weight	245 × 175 × 415 mm / 60 kg /80 kg
Water chiller dimensions / weight	550 × 340 × 430 mm / 11 kg

Heating configurations

300°C heating configuration (option)	Ambient to 300°C; 0.3 kW
500°C heating configuration (option)	Ambient to 500°C; 0.5 kW

Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical specifications

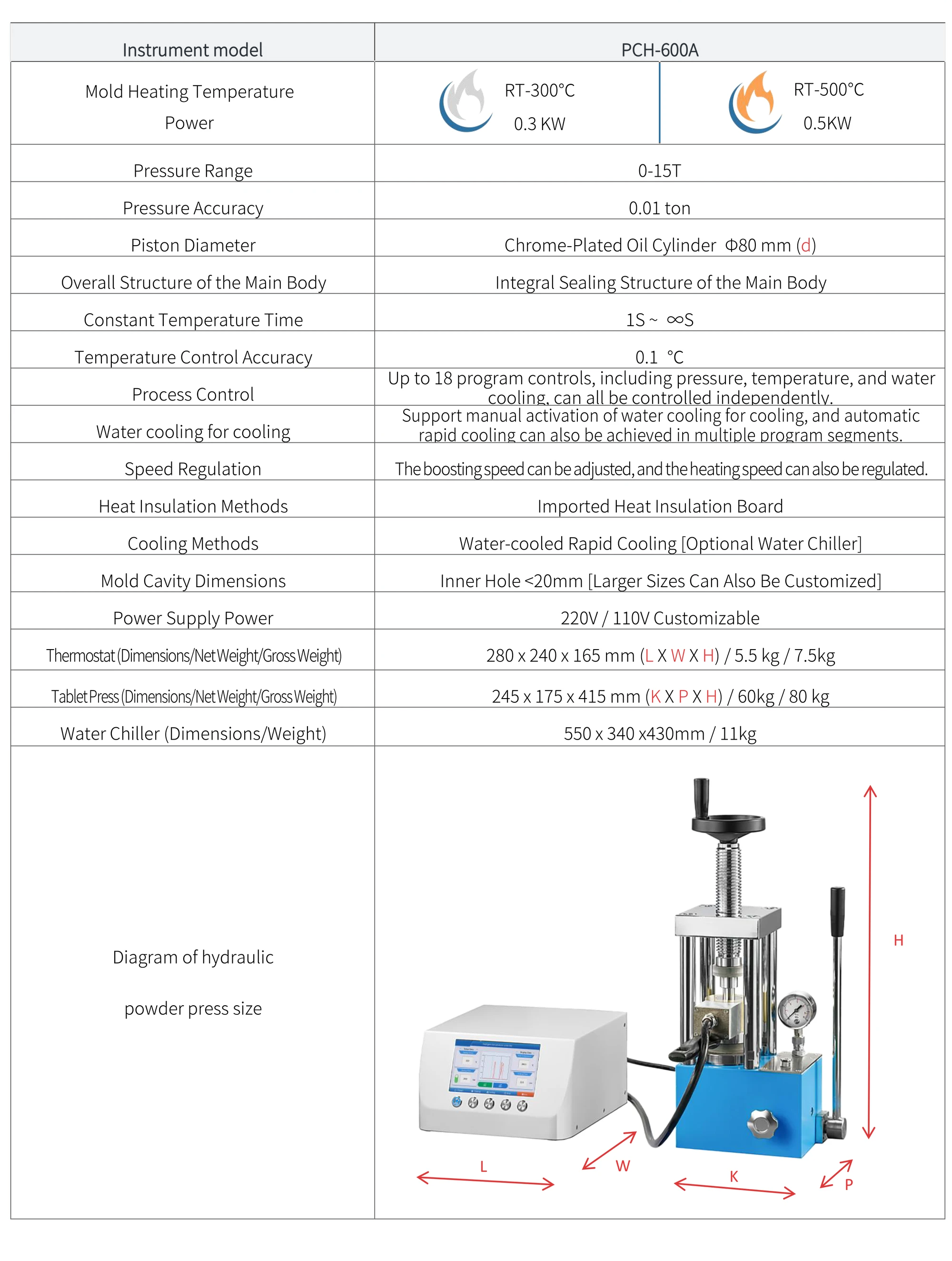

PCH-600A - manufacturer specification sheet

Product details

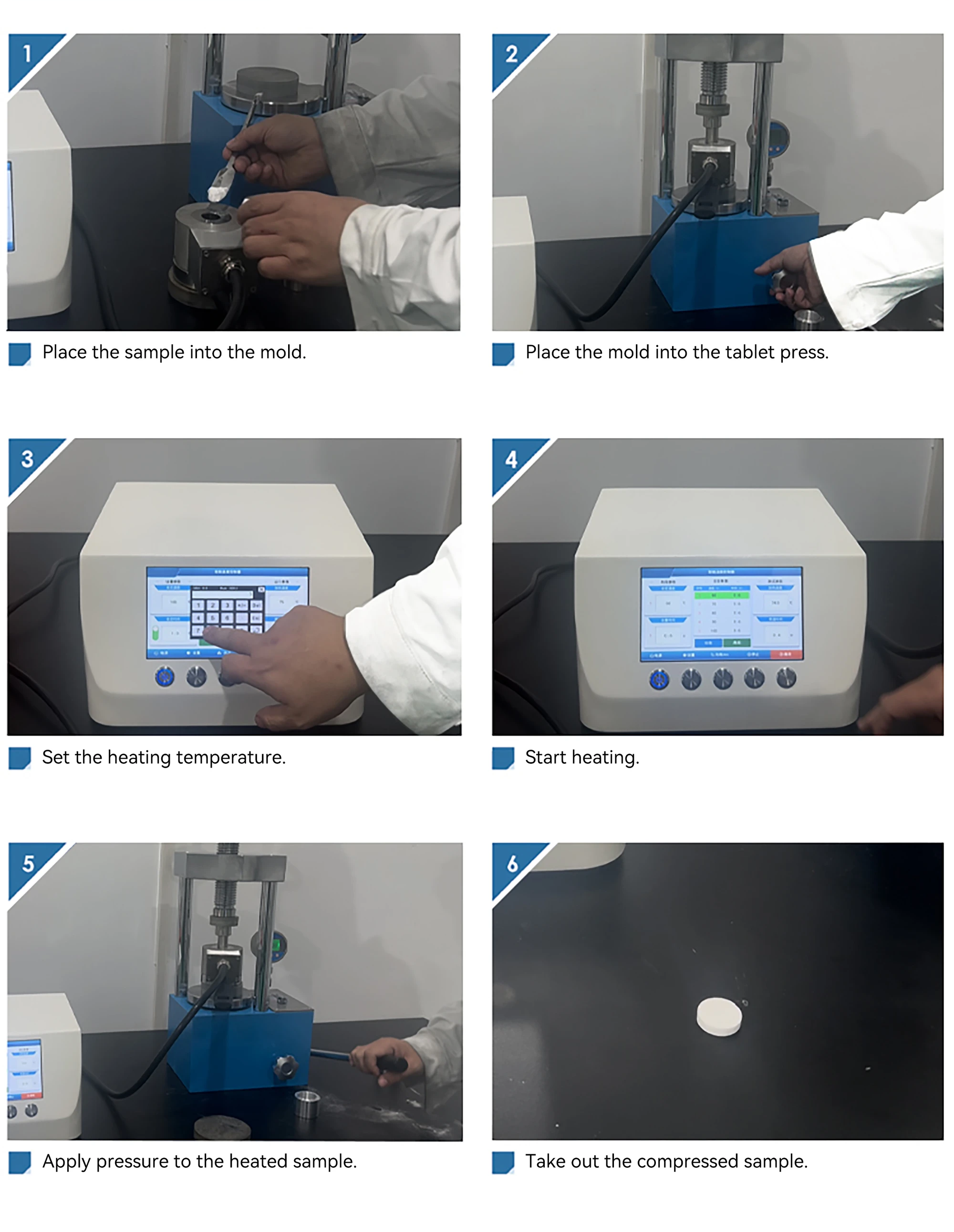

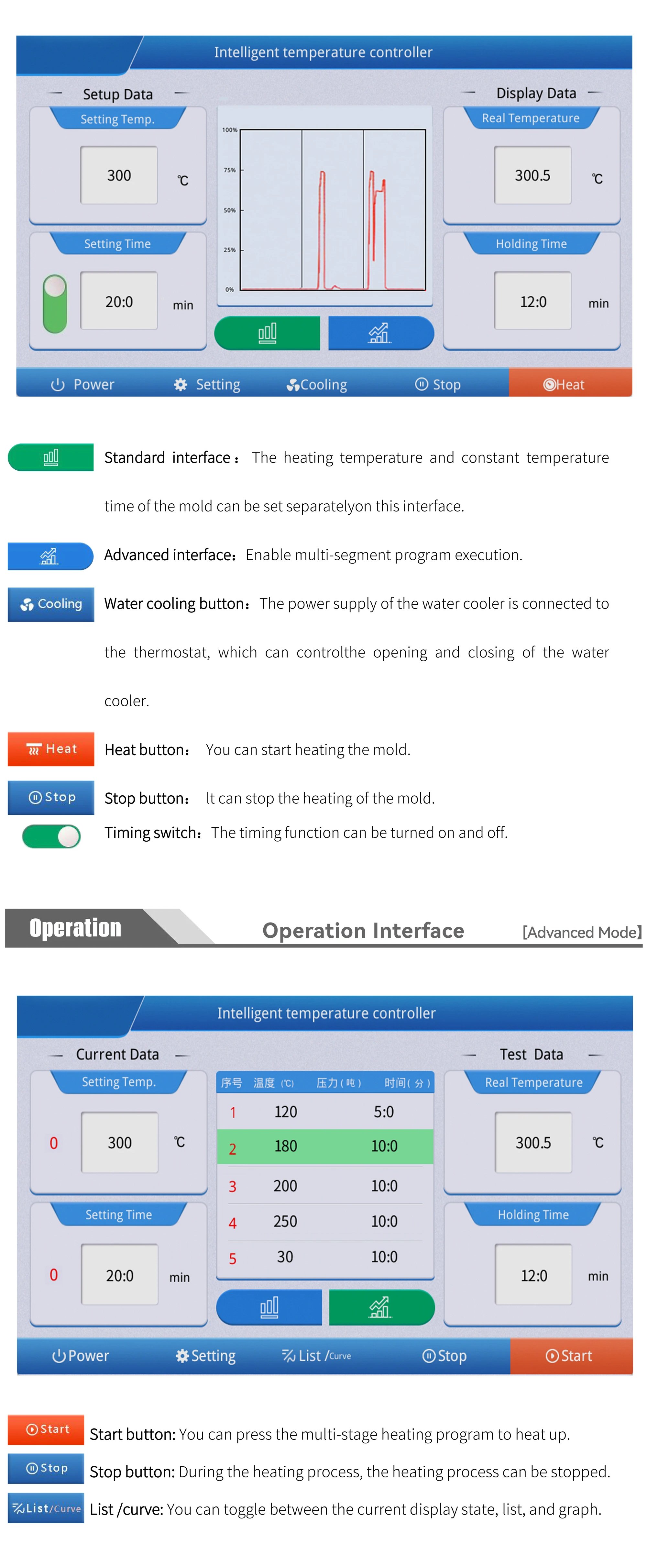

PCH-600A - manufacturer product illustration

Product inquiry

Request a quotation

Tell us about the intended application, required configuration, quantity and destination.

To quote accurately, include:

Material, process and target result
Capacity, operating range and required accessories
Destination country, voltage and expected quantity

Name * Business email * Company Country / region Phone / WhatsApp Preferred contact Requirement * Security check *

3 + 4 = ?

Procurement details can be confirmed before ordering.

For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.

Confirm requirements
