![PCD-600E Split Type Hot Press[300mm]](https://cdn.labsova.com/products/tianjin17/labsova-neutral-20261022/814bccd6a5ea2d32efcf8485-card.webp)
Hot Presses
PCD-600E Split Type Hot Press[300mm]
ModelPCD-600E
PCD-600E Split Type Hot Press. Pressing load range: 0-40T; Mold dimensions: 300 × 300 mm; Working space: 300 × 220 mm.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact

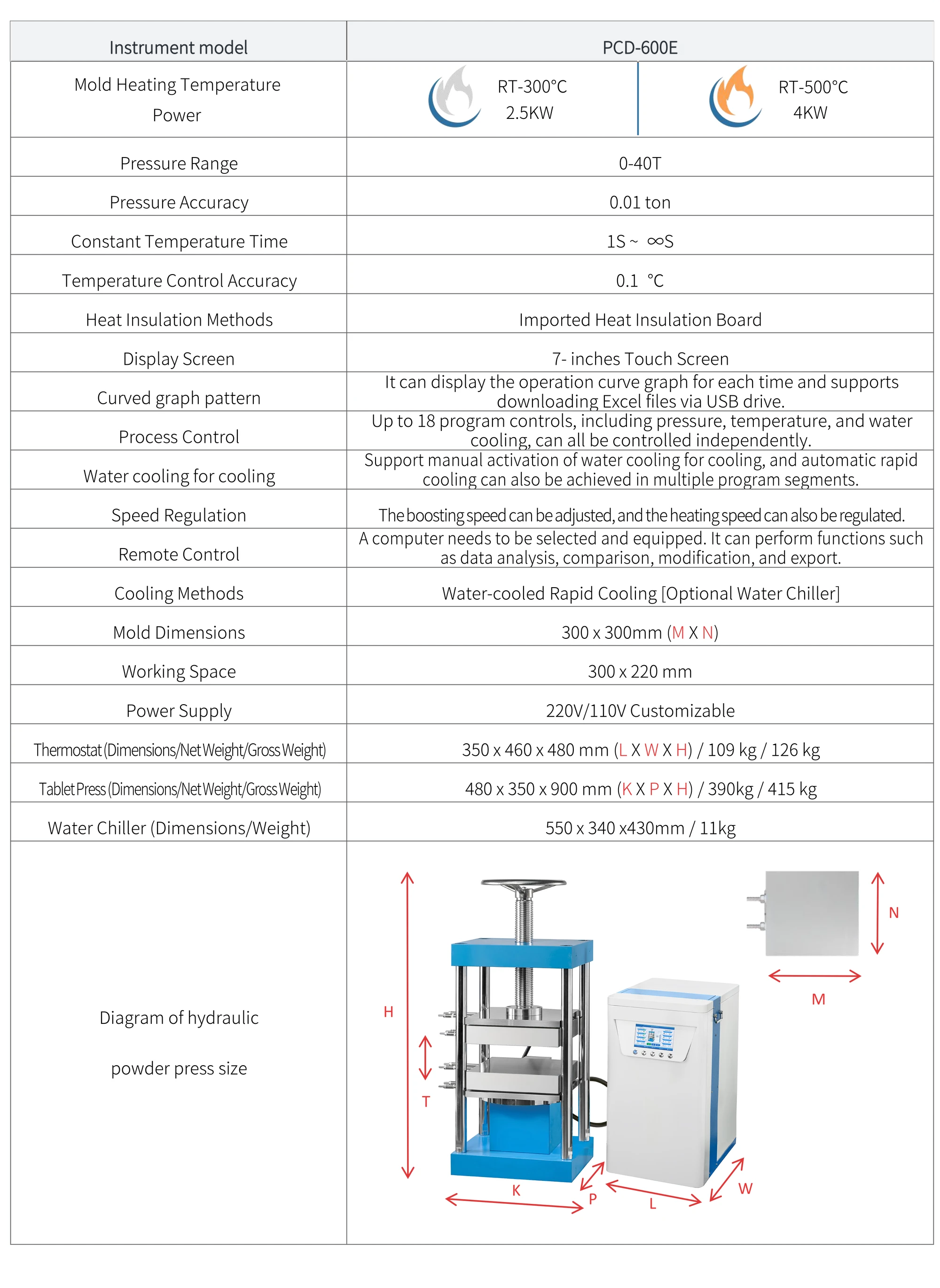

Technical data
Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Pressing load range | 0-40T |
|---|---|
| Stated load precision | 0.01 ton |
| Temperature control precision | 0.1 °C |
| Thermal insulation | Thermal insulation board |

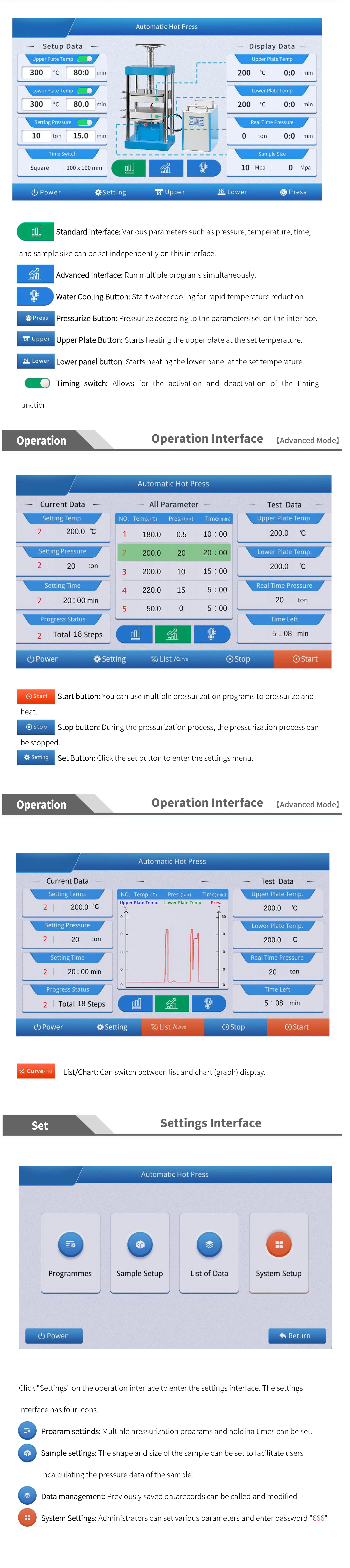

| Display | 7-inch touchscreen |
| Curve display | Process curve display with Excel export to a USB drive |
| Program control | Up to 18 program segments; independent control of pressure, temperature, water cooling |
| Water cooling control | Manual or programmed water cooling |
| Speed adjustment | Adjustable pressurization and heating rates |
| Remote control | Optional computer for data analysis, comparison, editing and export |
| Cooling method | Water cooling; external water chiller optional |
| Mold dimensions | 300 × 300 mm |
| Working space | 300 × 220 mm |
| Power supply | 220 V/110 V Customizable |
| Press dimensions / net / gross weight | 480 × 350 × 900 mm / 390 kg /415 kg |
| Water chiller dimensions / weight | 550 × 340 × 430 mm / 11 kg |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
