PC-600ZD Manual Vacuum Hot Press

Name: PC-600ZD Manual Vacuum Hot Press | LabSova
Brand: LabSova
SKU: PC-600ZD

ModelPC-600ZD

PC-600ZD Manual Vacuum Hot Press. Pressing load range: 0-10 T; Heating platen dimensions: 180 × 180 mm / 200 × 200 mm; Working space: 210 × 65 mm.

Request a Quote View Specifications

Final configuration confirmed before quotation
Customization and accessories reviewed by application
Export packing and documentation available on request

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical data

Technical specifications

Specifications are organized by system so different equipment types can present the parameters that matter for their application.

Technical specifications

Pressing load range	0-10 T
Stated load precision	0.01 T
Vacuum	-0.1 MPa
Display	7-inch touchscreen
Curve display	Process curve display with Excel export to a USB drive
Program control	Up to 18 program segments; independent control of temperature, vacuum, gas inlet, water cooling
Water cooling control	Manual or programmed water cooling
Speed adjustment	Adjustable heating rate
Remote control	Optional computer for data analysis, comparison, editing and export
Heating platen dimensions	180 × 180 mm / 200 × 200 mm
Working space	210 × 65 mm
Power supply	220 V 50 Hz (Supports 110 V)
Vacuum pump dimensions / weight	490 × 230 × 340 mm /14 kg
Product dimensions / net weight	550 × 600 × 800 mm / 480 kg
Packaging dimensions / gross weight	900 × 800 × 1400 mm / 550 kg

Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.

Direct technical contact

Email [email protected] WhatsApp +86 15038179437 WeChat 195 2233 7956

Technical specifications

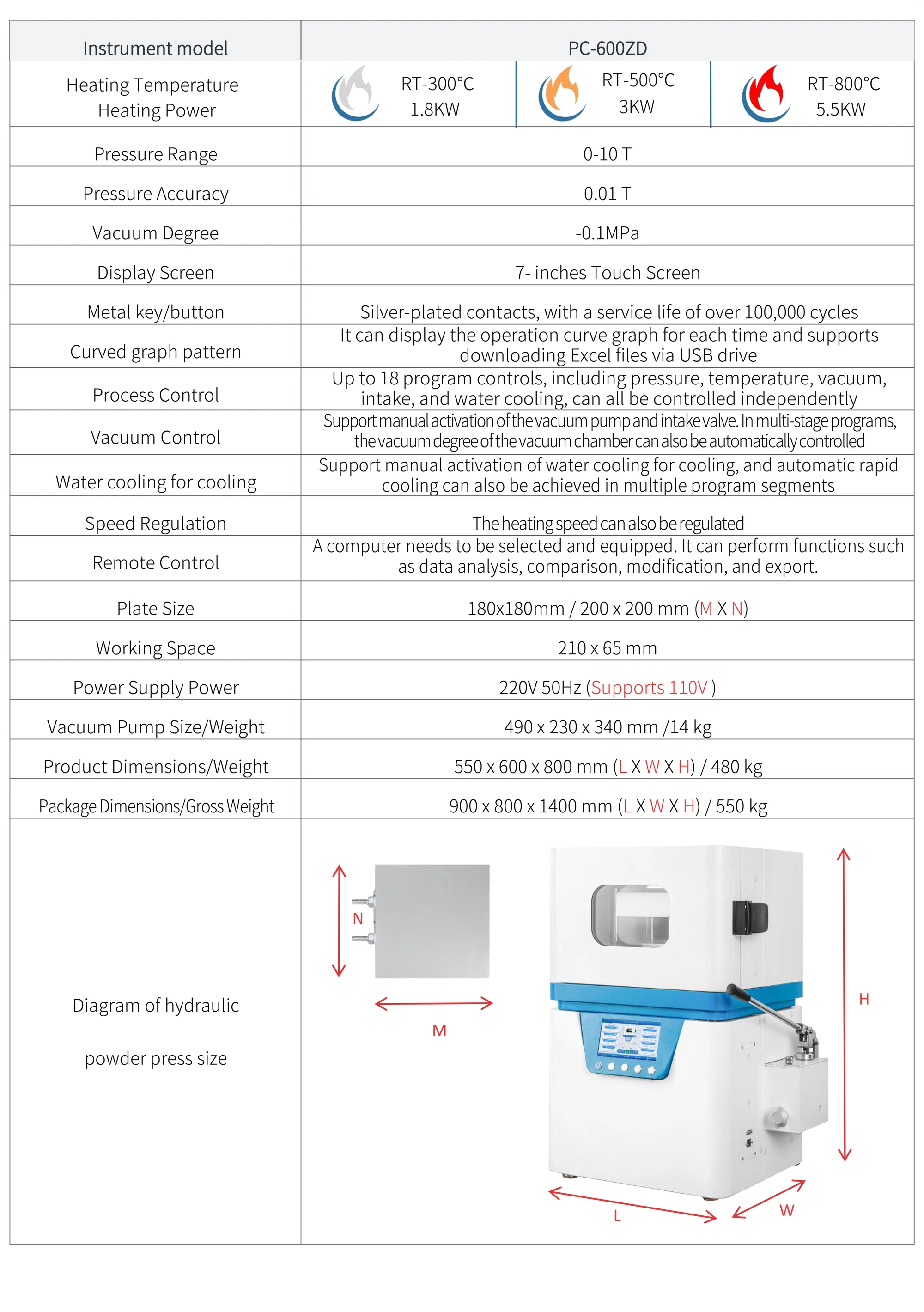

PC-600ZD - manufacturer specification sheet
