Hot Presses
PC-600F Double Plate Hot Press[400mm] - Compact Version
ModelPC-600F
PC-600F Double Plate Hot Press - Compact Version. Pressing load range: 0-15.0 T; Working space: 400 × 70 mm; Display: 7-inch touchscreen.
- Final configuration confirmed before quotation
- Customization and accessories reviewed by application
- Export packing and documentation available on request
Direct technical contact
Technical data

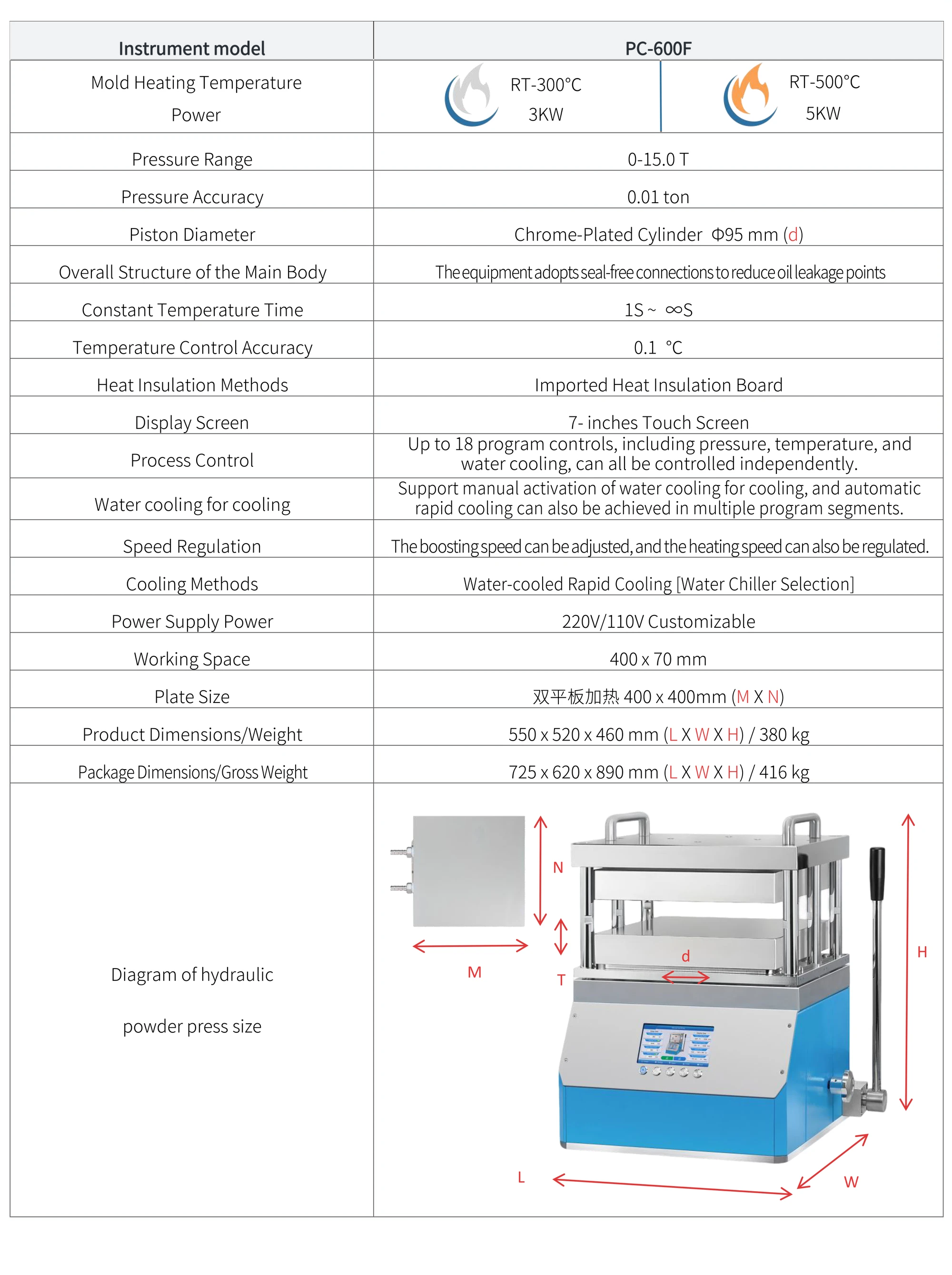

Technical specifications
Specifications are organized by system so different equipment types can present the parameters that matter for their application.
Technical specifications
| Pressing load range | 0-15.0 T |
|---|---|
| Stated load precision | 0.01 ton |
| Piston diameter | Chrome-Plated Cylinder Ø95 mm |
| Hydraulic body construction | Integral hydraulic body with fewer potential oil-leak points |
| Temperature control precision | 0.1 °C |
| Thermal insulation | Thermal insulation board |
| Display | 7-inch touchscreen |
| Program control | Up to 18 program segments; independent control of pressure, temperature, water cooling |
| Water cooling control | Manual or programmed water cooling |
| Speed adjustment | Adjustable pressurization and heating rates |
| Cooling method | Water cooling; external water chiller optional |
| Power supply | 220 V/110 V Customizable |
| Working space | 400 × 70 mm |
| Product dimensions / net weight | 550 × 520 × 460 mm / 380 kg |
| Packaging dimensions / gross weight | 725 × 620 × 890 mm / 416 kg |
Heating configurations
| 300°C heating configuration (option) | Ambient to 300°C; 3 kW |
|---|---|
| 500°C heating configuration (option) | Ambient to 500°C; 5 kW |
Specifications may change with configuration and customization. Final data is subject to the confirmed quotation.
Direct technical contact
Technical specifications
Product details
Procurement details can be confirmed before ordering.
Confirm requirements
For international buyers, quotation confirmation can include configuration, accessories, packing method, export documents, inspection photos or videos and shipping terms.
